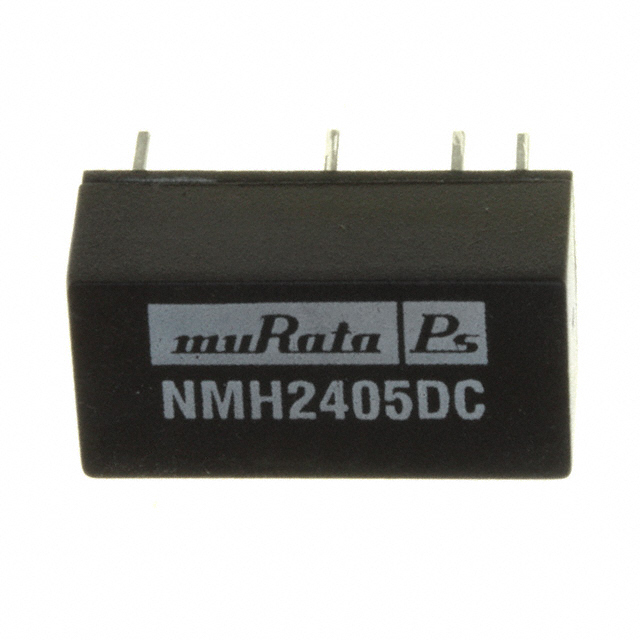

NMH2405DC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

NMH2405DC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | NMH2405DC | NMH24 Series |
---|---|---|
- | - | |
Applications | ITE (Commercial) | ITE (Commercial) |
Current - Output (Max) | - | 83 mA |
Current - Output (Max) | - | 67 - 83 mA |
Current - Output (Max) | - | 67 mA |
Current - Output (Max) | - | 111 mA |
Current - Output (Max) | - | 111 mA |
Efficiency | 81 % | 81 - 86 % |
Mounting Type | Through Hole | Through Hole |
Number of Outputs | 2 | 2 |
Operating Temperature [Max] | 85 °C | 85 °C |
Operating Temperature [Min] | -40 °C | -40 °C |
Package / Case | 14-DIP Module, 6 Leads | 7-SIP Module, 5 Leads, 14-DIP Module, 6 Leads |
Power (Watts) | 2 W | 2 W |
Size / Dimension [x] | 19.6 mm | 19.6 mm |
Size / Dimension [x] | 0.77 in | 0.77 in |
Size / Dimension [y] | 0.39 " | 0.3 - 0.39 " |
Size / Dimension [y] | 9.9 mm | 7.6 - 9.9 mm |
Size / Dimension [z] | 0.3 " | 0.3 - 0.4 " |
Size / Dimension [z] | 7.6 mm | 7.6 - 10.2 mm |
Type | Isolated Module | Isolated Module |
Voltage - Input (Max) [Max] | 26.4 V | 26.4 V |
Voltage - Input (Min) [Min] | 21.6 V | 21.6 V |
Voltage - Isolation | 1000 V | 1000 V |
Voltage - Output 1 | 5 V | 5 - 15 V |
Voltage - Output 2 | -5 V | -15 - -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
NMH24 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, 1KV ISOLATION, SIP, 1:1, 2 W, 2 OUTPUT, 12 V
Part | Voltage - Input (Max) [Max] | Efficiency | Applications | Power (Watts) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Output 2 | Package / Case | Voltage - Isolation | Type | Voltage - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) [Min] | Current - Output (Max) [Max] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NMH2412SC | 26.4 V | 86 % | ITE (Commercial) | 2 W | 19.6 mm | 0.77 in | 0.3 " | 10.2 mm | 0.4 " | 7.6 mm | Through Hole | 21.6 V | -12 V | 7-SIP Module, 5 Leads | 1000 V | Isolated Module | 12 V | 2 | 85 °C | -40 °C | 83 mA | 83 mA | |||
Murata Power Solutions Inc. NMH2415DC | 26.4 V | 86 % | ITE (Commercial) | 2 W | 19.6 mm | 0.77 in | 0.39 " | 7.6 mm | 0.3 " | 9.9 mm | Through Hole | 21.6 V | -15 V | 14-DIP Module, 6 Leads | 1000 V | Isolated Module | 15 V | 2 | 85 °C | -40 °C | 67 mA | 67 mA | |||
Murata Power Solutions Inc. NMH2412SC | |||||||||||||||||||||||||
Murata Power Solutions Inc. NMH2412DC | 26.4 V | 86 % | ITE (Commercial) | 2 W | 19.6 mm | 0.77 in | 0.39 " | 7.6 mm | 0.3 " | 9.9 mm | Through Hole | 21.6 V | -12 V | 14-DIP Module, 6 Leads | 1000 V | Isolated Module | 12 V | 2 | 85 °C | -40 °C | 83 mA | 83 mA | |||
Murata Power Solutions Inc. NMH2409DC | 26.4 V | 85 % | ITE (Commercial) | 2 W | 19.6 mm | 0.77 in | 0.39 " | 7.6 mm | 0.3 " | 9.9 mm | Through Hole | 21.6 V | -9 V | 14-DIP Module, 6 Leads | 1000 V | Isolated Module | 9 V | 2 | 85 °C | -40 °C | 111 mA | 111 mA | |||
Murata Power Solutions Inc. NMH2405DC | 26.4 V | 81 % | ITE (Commercial) | 2 W | 19.6 mm | 0.77 in | 0.39 " | 7.6 mm | 0.3 " | 9.9 mm | Through Hole | 21.6 V | -5 V | 14-DIP Module, 6 Leads | 1000 V | Isolated Module | 5 V | 2 | 85 °C | -40 °C |
Description
General part information
NMH24 Series
Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 21.6V - 26.4V Input
