342-114-555-212

Active

EDAC Inc.

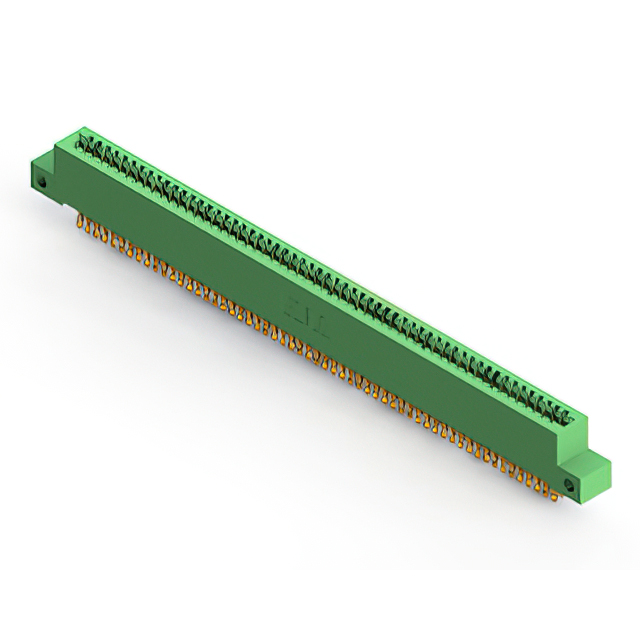

CARD EDGE CONNECTOR, 114 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

342-114-555-212

Active

EDAC Inc.

CARD EDGE CONNECTOR, 114 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-114-555-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	114
Number of Positions/Bay/Row [custom]	57
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

342-114 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Color	Number of Rows	Flange Feature	Termination	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Card Type	Termination Rows	Read Out	Gender	Contact Material	Mounting Type	Contact Type	Contact Finish	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 342-114-544-207	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2	Flush Mount M3 Threaded Insert Top Opening	Wire Wrap	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Through Hole	Cantilever	Gold	114
EDAC Inc. 342-114-544-201	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2		Wire Wrap	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Through Hole	Cantilever	Gold	114
EDAC Inc. 342-114-524-202	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2	Flush Mount Top Opening Unthreaded	Solder	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Through Hole	Cantilever	Gold	114	3.25 mm	0.128 "
EDAC Inc. 342-114-542-203	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2	Floating Bobbin Flush Mount	Wire Wrap	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Through Hole	Cantilever	Gold	114	2.95 mm	0.116 in
EDAC Inc. 342-114-523-202	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2	Flush Mount Top Opening Unthreaded	Solder	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Through Hole	Cantilever	Gold	114	3.25 mm	0.128 "
EDAC Inc. 342-114-540-204	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2	Flush Mount Top Opening Unthreaded	Wire Wrap	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Through Hole	Cantilever	Gold	114	3.96 mm	0.156 in
EDAC Inc. 342-114-500-212	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2	Flush Mount Side Opening Unthreaded	Solder Eyelet(s)	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Through Hole	Cantilever	Gold	114	3.25 mm	0.128 "
EDAC Inc. 342-114-560-203	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2	Floating Bobbin Flush Mount	Solder	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Board Edge Straddle Mount	Cantilever	Gold	114	2.95 mm	0.116 in	Card Extender
EDAC Inc. 342-114-555-212	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2	Flush Mount Side Opening Unthreaded	Solder Eyelet(s)	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Board Edge Straddle Mount	Cantilever	Gold	114	3.25 mm	0.128 "	Card Extender
EDAC Inc. 342-114-544-203	-40 °C	105 ░C	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	2	Floating Bobbin Flush Mount	Wire Wrap	57	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Dual	Female	Copper Alloy	Through Hole	Cantilever	Gold	114	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 20.16
Newark	Each	1	$ 22.53
		100	$ 16.44
		250	$ 14.36
		500	$ 12.53
		1000	$ 9.25

Description

General part information

342-114 Series

114 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
