846-078-558-807

Active

EDAC Inc.

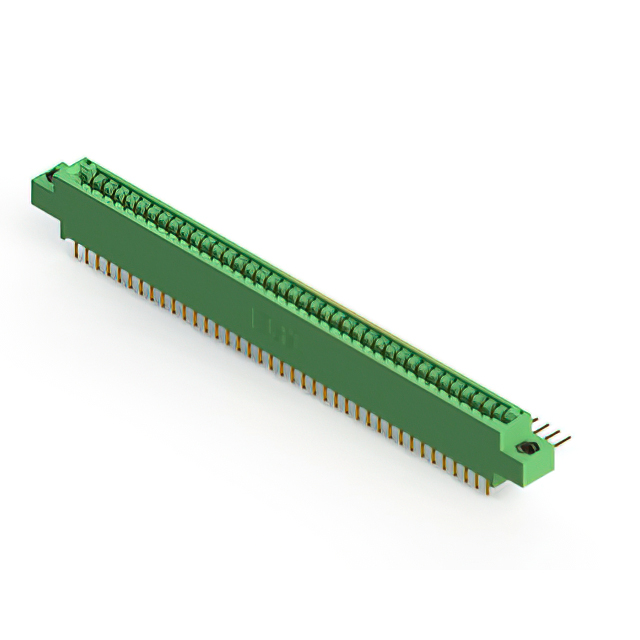

CONN EDGE DUAL FMALE 78POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-078-558-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-078-558-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	78
Number of Positions/Bay/Row [custom]	39
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

846-078 Series

...

Part	Contact Type	Flange Feature	Number of Rows	Termination	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Pitch [x]	Pitch [x]	Gender	Number of Positions	Contact Finish	Color	Read Out	Mounting Type	Termination Rows	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature	Features
EDAC Inc. 846-078-540-207	Cantilever	Flush Mount M3 Threaded Insert Top Opening	2	Wire Wrap	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Through Hole	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy
EDAC Inc. 846-078-520-803	Cantilever	Floating Bobbin Top Mount Opening	2	Solder	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Through Hole	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2.95 mm	0.116 in
EDAC Inc. 846-078-540-204	Cantilever	Flush Mount Top Opening Unthreaded	2	Wire Wrap	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Through Hole	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	3.96 mm	0.156 in
EDAC Inc. 846-078-522-804	Cantilever	Top Mount Opening Unthreaded	2	Solder	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Through Hole	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	3.96 mm	0.156 in
EDAC Inc. 846-078-558-807	Cantilever	M3 Threaded Insert Top Mount Opening	2	Solder	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Through Hole Right Angle	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy
EDAC Inc. 846-078-526-208	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	2	Solder	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Through Hole	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy
EDAC Inc. 846-078-540-802	Cantilever		2	Wire Wrap	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Through Hole	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy			3.25 mm	0.128 in
EDAC Inc. 846-078-556-201	Cantilever		2	Solder	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Board Edge Straddle Mount	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy					Card Extender
EDAC Inc. 846-078-541-807	Cantilever	M3 Threaded Insert Top Mount Opening	2	Wire Wrap	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Through Hole	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy
EDAC Inc. 846-078-560-807	Cantilever	M3 Threaded Insert Top Mount Opening	2	Solder	39	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.125 in	3.18 mm	Female	78	Gold	Green	Dual	Board Edge Straddle Mount	2	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy					Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 101.71
Newark	Each	1	$ 117.41
		100	$ 80.05
		250	$ 72.27
		500	$ 64.36
		1000	$ 54.50

Description

General part information

846-078 Series

78 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
