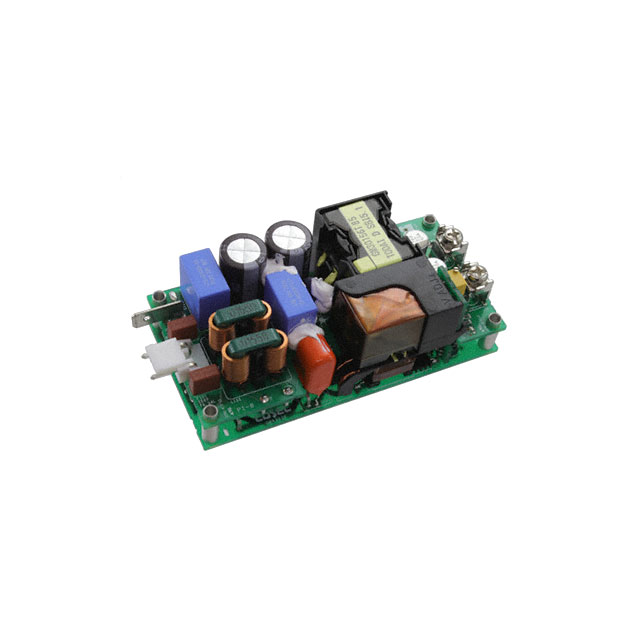

GMA300F-56-J3

Active

Cosel USA, Inc.

AC/DC CONVERTER 56V 302W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GMA300F-56-J3

Active

Cosel USA, Inc.

AC/DC CONVERTER 56V 302W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GMA300F-56-J3

Applications	ITE (Commercial), Medical
Approval Agency	cURus, DEMKO, CE
Efficiency	93 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Power (Watts)	302 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	56 V

GMA300F Series

Part	Efficiency	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output 1	Applications	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Output 1	Type	Mounting Type	Approval Agency	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]
Cosel USA, Inc. GMA300F-12-J1	92 %	Adjustable Output PFC Universal Input	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm	25 A	ITE (Commercial) Medical	4000 V	-20 C	70 °C	300 W	12 V	Open Frame	Chassis Mount	CE cURus D-Mark	1
Cosel USA, Inc. GMA300F-12-J3	92 %	Adjustable Output PFC Universal Input	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm	25 A	ITE (Commercial) Medical	4000 V	-20 C	70 °C	300 W	12 V	Open Frame	Chassis Mount	CE cURus DEMKO	1
Cosel USA, Inc. GMA300F-48-J1	93 %	Adjustable Output PFC Universal Input	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm	6.3 A	ITE (Commercial) Medical	4000 V	-20 C	70 °C	302 W	48 V	Open Frame	Chassis Mount	CE cURus DEMKO	1
Cosel USA, Inc. GMA300F-56-J3	93 %	Adjustable Output PFC Universal Input	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm		ITE (Commercial) Medical	4000 V	-20 C	70 °C	302 W	56 V	Open Frame	Chassis Mount	CE cURus DEMKO	1
Cosel USA, Inc. GMA300F-48-C	93 %	Adjustable Output PFC Universal Input	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm	6.3 A	ITE (Commercial) Medical	4000 V	-20 C	70 °C	302 W	48 V	Conformal Coated Open Frame	Chassis Mount	CE cURus DEMKO	1
Cosel USA, Inc. GMA300F-48-I2	93 %	Adjustable Output PFC Universal Input	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm	6.3 A	ITE (Commercial) Medical	4000 V	-20 C	70 °C	302 W	48 V	Open Frame	Chassis Mount	CE cURus DEMKO	1
Cosel USA, Inc. GMA300F-24-C	93 %	Adjustable Output PFC Universal Input	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm	12.5 A	ITE (Commercial) Medical	4000 V	-20 C	70 °C	300 W	24 V	Conformal Coated Open Frame	Chassis Mount	CE cURus D-Mark	1
Cosel USA, Inc. GMA300F-48-J3	93 %	Adjustable Output PFC Universal Input	101.6 mm	36.6 mm	1.44 "	4 in	2 in	50.8 mm	6.3 A	ITE (Commercial) Medical	4000 V	-20 C	70 °C	302 W	48 V	Open Frame	Chassis Mount	CE cURus DEMKO	1
Cosel USA, Inc. GMA300F-12	92 %	Adjustable Output PFC Universal Input	101.6 mm						25 A	ITE (Commercial) Medical	4000 V	-20 C	70 °C	300 W	12 V	Open Frame	Chassis Mount	CE cURus	1	1.31 in	4 "	2 "	33.3 mm	50.8 mm
Cosel USA, Inc. GMA300F-24	93 %	Adjustable Output PFC Universal Input	101.6 mm						12.5 A	ITE (Commercial) Medical	4000 V	-20 C	70 °C	300 W	24 V	Open Frame	Chassis Mount	CE cURus	1	1.31 in	4 "	2 "	33.3 mm	50.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 130.55

Description

General part information

GMA300F Series

Open Frame AC DC Converters 1 Output 56V 85 ~ 264 VAC Input
