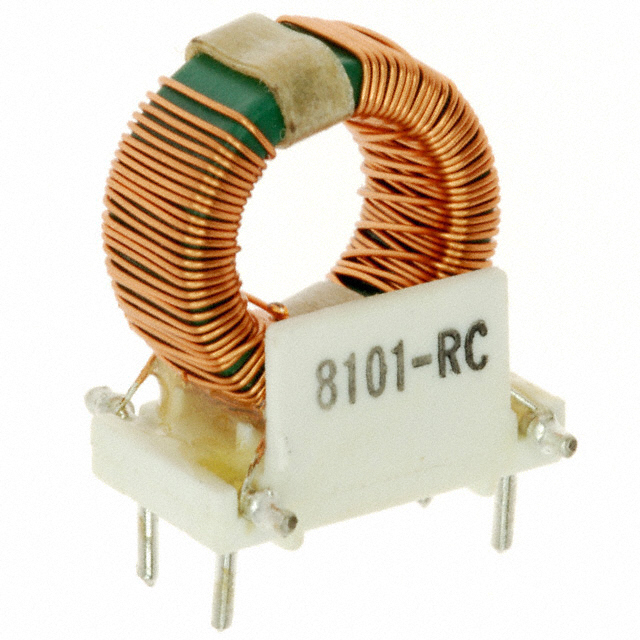

8101
ObsoleteBourns Inc.
CMC 4MH 1.7A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8101
ObsoleteBourns Inc.
CMC 4MH 1.7A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8101 |
|---|---|
| DC Resistance (DCR) (Max) | 173 mOhm |
| Height (Max) | 22.86 mm |
| Height (Max) [Max] | 0.9 in |
| Inductance @ Frequency | 4 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 0.76 " |
| Size / Dimension [x] | 19.3 mm |
| Size / Dimension [y] | 10.8 mm |
| Size / Dimension [y] | 0.425 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.33 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.22 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.13 | |||
| 5000 | $ 0.12 | |||
Description
General part information
810 Series
4 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1.7A DCR 173mOhm
