734-112
ActiveWAGO Corporation
PLUGGABLE TERMINAL BLOCK, 3.5 MM, 12 POSITIONS, 28 AWG, 14 AWG, 1.5 MM², CLAMP
Deep-Dive with AI
Search across all available documentation for this part.
734-112
ActiveWAGO Corporation
PLUGGABLE TERMINAL BLOCK, 3.5 MM, 12 POSITIONS, 28 AWG, 14 AWG, 1.5 MM², CLAMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 734-112 |
|---|---|
| Color | Gray |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - IEC | 10 A |
| Current - UL | 10 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -60 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 12 |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Type | Plug, Female Sockets |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.08 mm² |
| Wire Strip Length [Max] | 7 mm |
| Wire Strip Length [Min] | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
734 Series

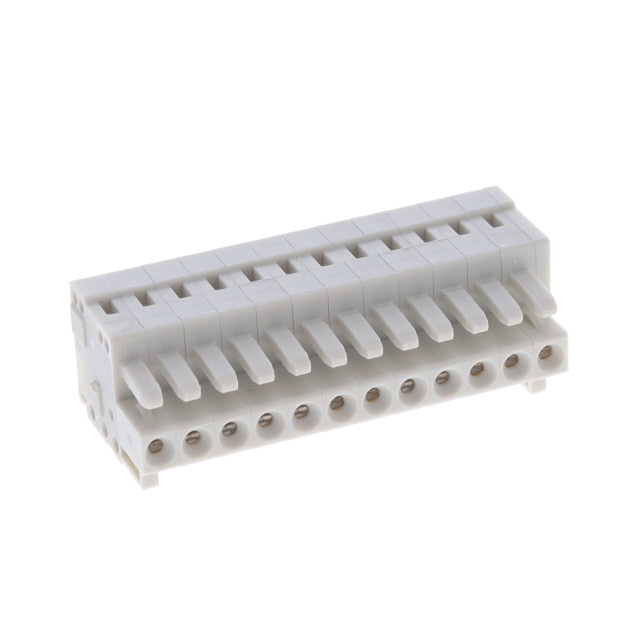

The 734-112 is a 12-pole light gray Pluggable Female connector with tin-plated copper alloy contacts and a polyamide 6.6 insulator. It accepts 28 to 14AWG wire size.
