734-102

Active

WAGO Corporation

PLUGGABLE TERMINAL BLOCK, 3.5 MM, 2 POSITIONS, 28 AWG, 14 AWG, 1.5 MM², CLAMP

Find alt

Alpha

734-102

Active

WAGO Corporation

PLUGGABLE TERMINAL BLOCK, 3.5 MM, 2 POSITIONS, 28 AWG, 14 AWG, 1.5 MM², CLAMP

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

734 Series

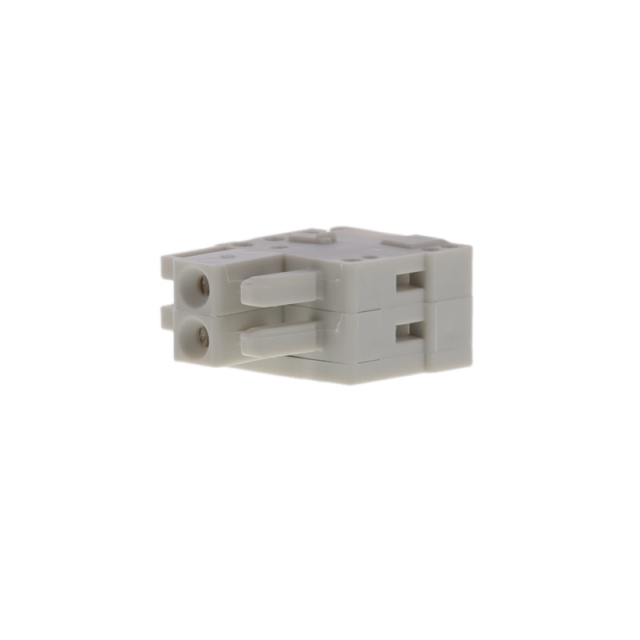

The 734-102 from Wago is a light gray colour, 2-pole female connector with 3.5mm (0.138inch) pin spacing. It is 100% protected against mismating, only mating halves with the same pole number can be connected together. This connector features strain relief plates and housings for in-the-field assembly. It has two connection points, two potentials and one level. It also has chrome-nickel spring steel (CrNi) lamping spring material, tin plated copper alloy contacts and polyamide 66 (PA 66) insulation. The connector has ABS, BV, CCA, CSA, DNV GL, KEMA, UR E45171 (Underwriters Laboratories Inc) and LR approvals. It has 0.03MJ fire load, 1.725g weight and 9.2mm (0.362inch) x 13.4mm (0.528inch) x 18.6mm (0.732inch) dimension (W x H x D).

Technical Specifications

Parameters and characteristics for this part

Specification	734-102

Color	Gray
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - IEC	10 A
Current - UL	10 A
Features	Retention Latches (Non-Wire Side)
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.528 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-60 °C
Pitch	0.138 in
Plug Wire Entry Angle	180 °
Positions Per Level	2
Termination Style	Tension Clamp, Screwless - Spring Cage
Type	Female Sockets, Plug
Voltage - IEC	320 V
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	28 AWG
Wire Gauge or Range - AWG (Min)	14 AWG
Wire Gauge or Range - mm² (Maximum)	1.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.08 mm²
Wire Strip Length (Max)	7 mm
Wire Strip Length (Min)	6 mm

734 Series

Part	Color	Type	For Use With/Related Products	Positions Per Level	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Voltage - IEC	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Mating Finish	Voltage - UL	Number of Levels	Pitch	Number of Positions	Mounting Type	Current - IEC	Plug Wire Entry Angle	Features	Current - UL	Insulation Height	Contact Material	Housing Material	Material Flammability Rating	Wire Strip Length (Min)	Wire Strip Length (Max)
WAGO Corporation 734-230	White	Push-Button	Terminal Blocks
WAGO Corporation 734-104	Gray	Female Sockets Plug		4	0.08 mm²	1.5 mm²	-60 °C	100 °C	Screwless - Spring Cage Tension Clamp	320 V	14 AWG	28 AWG	Tin	300 V	1	0.138 in	4	Free Hanging (In-Line)	10 A	180 °	Retention Latches (Non-Wire Side)	10 A	0.528 in	Copper Alloy	Nylon 6/6 PA66 Polyamide	UL94 V-0	6 mm	7 mm
WAGO Corporation 734-102	Gray	Female Sockets Plug		2	0.08 mm²	1.5 mm²	-60 °C	100 °C	Screwless - Spring Cage Tension Clamp	320 V	14 AWG	28 AWG	Tin	300 V	1	0.138 in	2	Free Hanging (In-Line)	10 A	180 °	Retention Latches (Non-Wire Side)	10 A	0.528 in	Copper Alloy	Nylon 6/6 PA66 Polyamide	UL94 V-0	6 mm	7 mm
WAGO Corporation 734-112	Gray	Female Sockets Plug		12	0.08 mm²	1.5 mm²	-60 °C	100 °C	Screwless - Spring Cage Tension Clamp	320 V	14 AWG	28 AWG	Tin	300 V	1	0.138 in	12	Free Hanging (In-Line)	10 A	180 °	Retention Latches (Non-Wire Side)	10 A	0.528 in	Copper Alloy	Nylon 6/6 PA66 Polyamide	UL94 V-0	6 mm	7 mm
WAGO Corporation 734-206	Orange	Female Sockets Plug		6	0.08 mm²	1.5 mm²	-60 °C	100 °C	Screwless - Spring Cage Tension Clamp	320 V	14 AWG	28 AWG	Tin	300 V	1	0.15 in	6	Free Hanging (In-Line)	10 A	180 °	Retention Latches (Non-Wire Side)	10 A	0.528 in	Copper Alloy	Nylon 6/6 PA66 Polyamide	UL94 V-0	6 mm	7 mm
WAGO Corporation 734-204	Orange	Female Sockets Plug		4	0.08 mm²	1.5 mm²	-60 °C	100 °C	Screwless - Spring Cage Tension Clamp	320 V	14 AWG	28 AWG	Tin	300 V	1	0.15 in	4	Free Hanging (In-Line)	10 A	180 °	Retention Latches (Non-Wire Side)	10 A	0.528 in	Copper Alloy	Nylon 6/6 PA66 Polyamide	UL94 V-0	6 mm	7 mm
