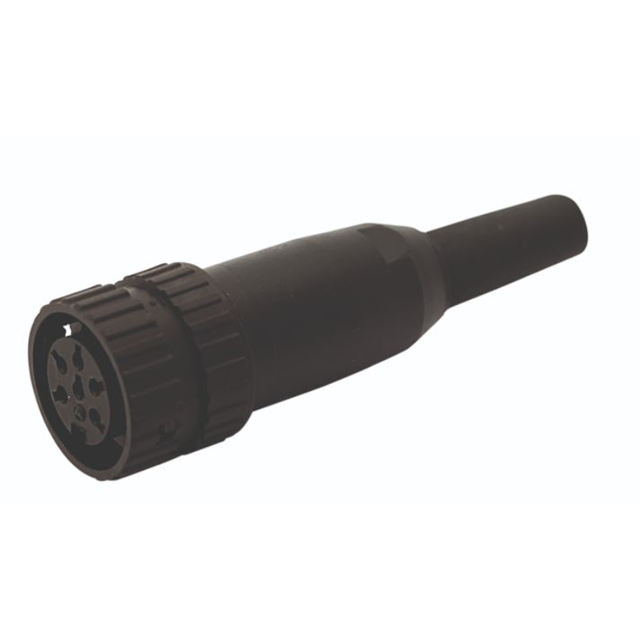

T 3435 991

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 7P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 7P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Orientation	Current Rating (Amps)	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Primary Material	Features	Ingress Protection	Shell Material	Connector Type	Shell Size - Insert	Contact Finish - Mating	Shell Finish	Color	Contact Size	Type	Note	Contact Shape	Material Flammability Rating	Shielding	Housing Color	Insert Material	Contact Type
Amphenol Tuchel Industrial T 3435 502	250 VDC	Keyed	7 A	Free Hanging (In-Line)	7	100 °C	-40 °C	Bayonet Lock	Plastic	Cable Clamp Strain Relief	IP40	Plastic	Female Sockets Plug	M16-7	Silver
Amphenol Tuchel Industrial T 3435 991	250 VDC	Keyed	7 A	Free Hanging (In-Line)	7	100 °C	-40 °C	Bayonet Lock	Plastic	Strain Relief	IP40	Plastic	Female Sockets Plug	M16-7	Silver
Amphenol Tuchel Industrial T 3435 005	250 VDC	Keyed	7 A	Free Hanging (In-Line) Right Angle	7	100 °C	-40 °C	Bayonet Lock	Metal	Strain Relief	IP40	Die Cast	Female Sockets Plug	M16-7	Silver	Nickel	Silver
Amphenol Tuchel Industrial T 3435 552		Keyed		Free Hanging (In-Line)	7	100 °C	-40 °C	Bayonet Lock		Backshell Cable Clamp Coupling Nut	IP40	Plastic	Plug Housing	M16-7				1.5 mm	For Female Sockets	Contacts Not Included	Circular	UL94 V-0	Unshielded	Black	Thermoplastic	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 7.06

General part information

7 Position Circular Connector Plug, Female Sockets Solder Cup
