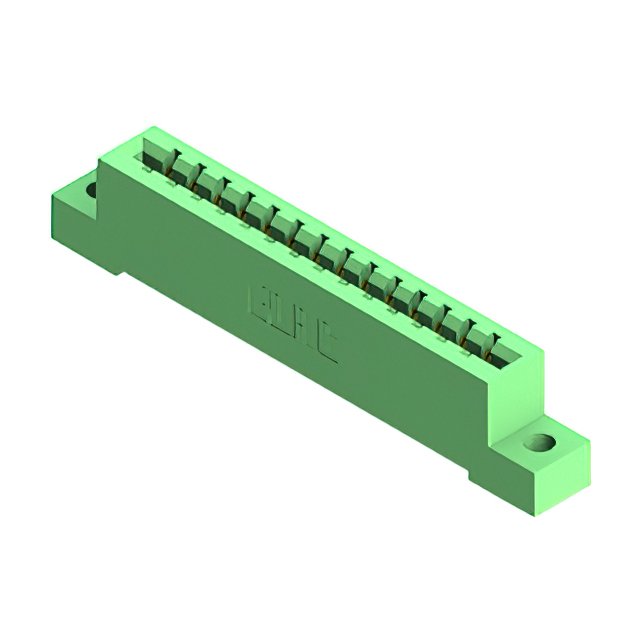

337-014-521-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 14POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-014-521-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 14POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-014-521-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
337-014 Series
...
| Part | Read Out | Material - Insulation | Number of Positions/Bay/Row [custom] | Contact Finish | Color | Number of Rows | Termination Rows | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Card Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Pitch [x] | Pitch [x] | Termination | Gender | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Polyester Thermoplastic | 14 | Gold | Green | 1 | 1 | Through Hole | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Single Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Solder | Female | |
EDAC Inc. | Single | Polyester Thermoplastic | 14 | Gold | Green | 1 | 1 | Through Hole | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Single Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Solder | Female | |
EDAC Inc. | Dual | Polyester Thermoplastic | 7 | Gold | Green | 2 | 2 | Through Hole Right Angle | M3 Threaded Insert Top Mount Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Wire Wrap | Female | |||
EDAC Inc. | Dual | Polyester Thermoplastic | 7 | Gold | Green | 2 | 2 | Through Hole | 4-40 Threaded Insert Top Mount Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Solder | Female | Card Guides | ||
EDAC Inc. | Single | Polyester Thermoplastic | 14 | Gold | Green | 1 | 1 | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Single Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Solder | Female | |||
EDAC Inc. | Dual | Polyester Thermoplastic | 7 | Gold | Green | 2 | 2 | Board Edge Straddle Mount | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Solder Eyelet(s) | Female | |||
EDAC Inc. | Single | Polyester Thermoplastic | 14 | Gold | Green | 1 | 1 | Through Hole | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Single Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Wire Wrap | Female | |
EDAC Inc. | Single | Polyester Thermoplastic | 14 | Gold | Green | 1 | 1 | Through Hole | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Single Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Solder | Female | |
EDAC Inc. | Dual | Polyester Thermoplastic | 7 | Gold | Green | 2 | 2 | Through Hole Right Angle | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Wire Wrap | Female | |
EDAC Inc. | Single | Polyester Thermoplastic | 14 | Gold | Green | 1 | 1 | Through Hole Right Angle | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Non Specified - Single Edge | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 14 | 0.156 in | 3.96 mm | Wire Wrap | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 5.81 | |
Description
General part information
337-014 Series
14 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
