776180-1

Active

TE Connectivity AMP Connectors

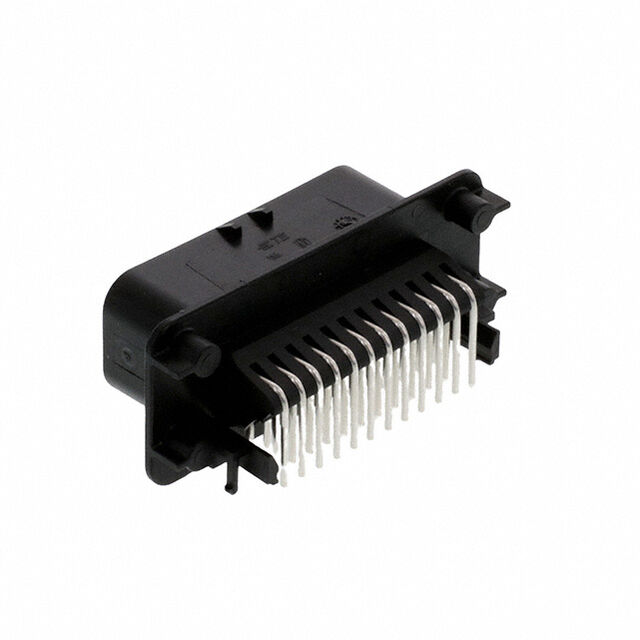

CONN HEADER R/A 35POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

776180-1

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 35POS 4MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.68
		32	$ 14.08
		128	$ 12.58
		512	$ 11.25

Description

General part information

776180 Series

Connector Header Panel Mount, Through Hole, Right Angle 35 position 0.157" (4.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	776180-1	776180 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealable, Board Guide	Sealable, Board Guide
Insulation Color	Black	Black, Natural, Blue, Gray
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	35	35
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

776180 Series

CONN HEADER R/A 35POS 4MM

Part	Termination	Style	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Material	Shrouding	Voltage Rating	Applications	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions Loaded	Contact Type	Fastening Type	Connector Type	Features	Contact Shape	Insulation Color	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating
TE Connectivity AMP Connectors 776180-1	Solder	Board to Cable/Wire	35	0.157 in	4 mm	3	Brass	Shrouded - 4 Wall	250 VAC	Automotive, Industrial	0.157 "	4 mm	Varies by Wire Gauge	All	Male Pin	Locking Ramp	Header	Board Guide, Sealable	Circular	Black	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Right Angle, Through Hole	-40 °C	105 ░C
TE Connectivity AMP Connectors 1-776180-2	Solder	Board to Cable/Wire	35	0.157 in	4 mm	3	Brass	Shrouded - 4 Wall	250 VAC	Automotive, Industrial	0.157 "	4 mm	Varies by Wire Gauge	All	Male Pin	Locking Ramp	Header	Board Guide, Sealable	Circular	Natural	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Right Angle, Through Hole	-40 °C	125 °C	Gold-Palladium
TE Connectivity AMP Connectors 776180-5	Solder	Board to Cable/Wire	35	0.157 in	4 mm	3	Brass	Shrouded - 4 Wall	250 VAC	Automotive, Industrial	0.157 "	4 mm	Varies by Wire Gauge	All	Male Pin	Locking Ramp	Header	Board Guide, Sealable	Circular	Blue	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Right Angle, Through Hole	-40 °C	105 ░C
TE Connectivity AMP Connectors 776180-2	Solder	Board to Cable/Wire	35	0.157 in	4 mm	3	Brass	Shrouded - 4 Wall	250 VAC	Automotive, Industrial	0.157 "	4 mm	Varies by Wire Gauge	All	Male Pin	Locking Ramp	Header	Board Guide, Sealable	Circular	Natural	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Right Angle, Through Hole	-40 °C	105 ░C
TE Connectivity AMP Connectors 776180-4	Solder	Board to Cable/Wire	35	0.157 in	4 mm	3	Brass	Shrouded - 4 Wall	250 VAC	Automotive, Industrial	0.157 "	4 mm	Varies by Wire Gauge	All	Male Pin	Locking Ramp	Header	Board Guide, Sealable	Circular	Gray	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Right Angle, Through Hole	-40 °C	105 ░C
TE Connectivity AMP Connectors 1-776180-5	Solder	Board to Cable/Wire	35	0.157 in	4 mm	3	Brass	Shrouded - 4 Wall	250 VAC	Automotive, Industrial	0.157 "	4 mm	Varies by Wire Gauge	All	Male Pin	Locking Ramp	Header	Board Guide, Sealable	Circular	Blue	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Right Angle, Through Hole	-40 °C	125 °C	Gold-Palladium
