Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11_QMA-50-3-1/133_NE

Body Finish	White Bronze
Body Material	Bronze
Cable Group	RG-142, 400, 223
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	480 V

11_QMA-50 Series

Part	Shield Termination	Dielectric Material	Number of Ports	Contact Termination	Connector Type	Housing Color	Impedance	Frequency - Max [Max]	Center Contact Material	Body Finish	Voltage Rating	Fastening Type	Center Contact Plating	Mounting Type	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group
Huber+Suhner, Inc. 11_QMA-50-3-1/133_NH	Solder	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Crimp	Male Pin Plug	Silver	50 Ohms	18 GHz	Brass	White Bronze	480 V	Push-Pull	Gold	Free Hanging (In-Line)	Brass	85 °C	-40 °C
Huber+Suhner, Inc. 11_QMA-50-2-1/133_NH	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Crimp	Male Pin Plug	Silver	50 Ohms	18 GHz	Brass	White Bronze	480 V	Push-Pull	Gold	Free Hanging (In-Line)	Bronze	85 °C	-40 °C	RD-316
Huber+Suhner, Inc. 11_QMA-50-3-3/133_NE	Solder	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Crimp	Male Pin Plug	Silver	50 Ohms	18 GHz	Beryllium Copper Bronze	White Bronze	480 V	Push-Pull	Gold	Free Hanging (In-Line)	Bronze	85 °C	-40 °C	RG-141
Huber+Suhner, Inc. 11_QMA-50-3-1/133_NE	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Solder	Male Pin Plug	Silver	50 Ohms	18 GHz	Brass	White Bronze	480 V	Push-Pull	Gold	Free Hanging (In-Line)	Bronze	85 °C	-40 °C	223 400 RG-142
Huber+Suhner, Inc. 11_QMA-50-4-2/133_NE	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Crimp	Male Pin Plug	Silver	50 Ohms	18 GHz	Bronze	White Bronze	480 V	Push-Pull	Gold	Free Hanging (In-Line)	Brass	85 °C	-40 °C	LMR-240
Huber+Suhner, Inc. 11_QMA-50-4-2/133_NH	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Crimp	Male Pin Plug	Silver	50 Ohms	18 GHz	Bronze	White Bronze	480 V	Push-Pull	Gold	Free Hanging (In-Line)	Brass	85 °C	-40 °C	LMR-240
Huber+Suhner, Inc. 11_QMA-50-3-2/133_NH	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Solder	Male Pin Plug	Silver	50 Ohms	18 GHz	Brass	White Bronze	480 V	Push-Pull	Gold	Free Hanging (In-Line)	Bronze	85 °C	-40 °C	RG-58
Huber+Suhner, Inc. 11_QMA-50-3-2/133_NE	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Solder	Male Pin Plug	Silver	50 Ohms	18 GHz	Brass	White Bronze	480 V	Push-Pull	Gold	Free Hanging (In-Line)	Bronze	85 °C	-40 °C	RG-58
Huber+Suhner, Inc. 11_QMA-50-2-1/133_NE	Crimp	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Crimp	Male Pin Plug	Silver	50 Ohms	18 GHz	Brass	White Bronze	480 V	Push-Pull	Gold	Free Hanging (In-Line)	Bronze	85 °C	-40 °C	RD-316

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.67
		10	$ 18.98
		25	$ 18.16
		50	$ 17.57
		100	$ 16.99
		250	$ 16.05
		500	$ 15.58

Description

General part information

11_QMA-50 Series

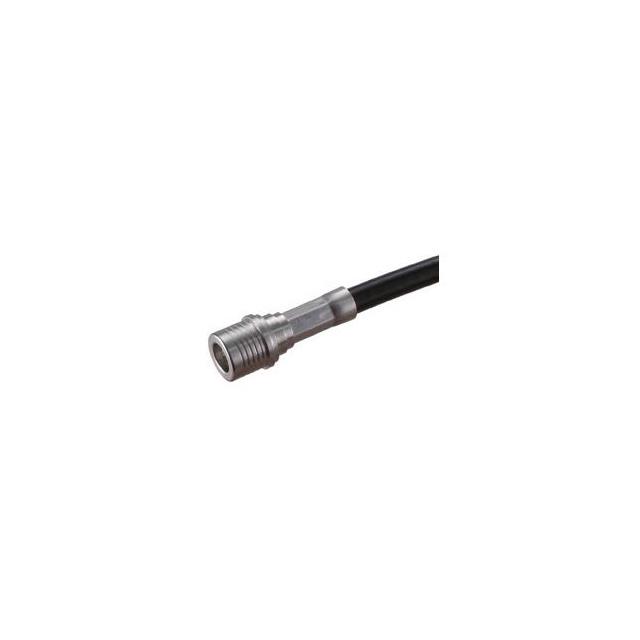

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
