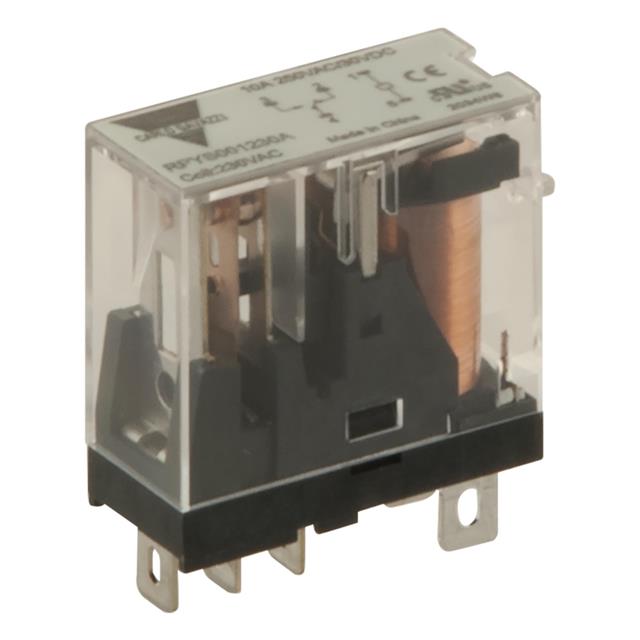

RPYS001024D

Obsolete

CARLO GAVAZZI

RELAY GEN PURPOSE SPDT 10A 24V

Search across all available documentation for this part.

Obsolete

CARLO GAVAZZI

RELAY GEN PURPOSE SPDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 10A 24V

Part	Termination Style	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage [Max]	Must Operate Voltage	Release Time	Contact Material	Approval Agency	Mounting Type	Must Release Voltage	Contact Rating (Current)	Operate Time	Coil Type	Contact Form	Coil Current	Coil Voltage	Relay Type
CARLO GAVAZZI RPYS001024D	Plug In, 5 Pin	300 W, 2500 VA	-40 °C	55 °C	30 VDC, 250 VAC	18 VDC	10 ms	Silver Alloy	CE, UL	Socketable	2.4 VDC	10 A	20 ms	Non Latching	SPDT (1 Form C)	21.8 mA	24 VDC	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
