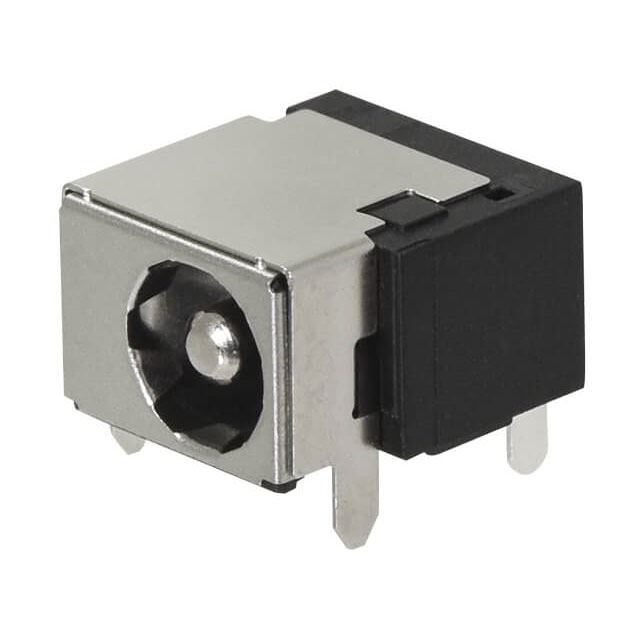

PJ-085BH
ObsoleteCUI Devices
PWR JACK 2.5X5.9MM RT THROUGH HO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-085BH
ObsoleteCUI Devices
PWR JACK 2.5X5.9MM RT THROUGH HO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-085BH |
|---|---|
| Actual Diameter | 5.9 mm, 2.5 mm |
| Actual Diameter [diameter] | 0.232 in, 0.098 in |
| Body Color | Silver, Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth [x] | 8.2 mm |
| Mating Length/Depth [x] | 0.323 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PJ-085 Series
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
