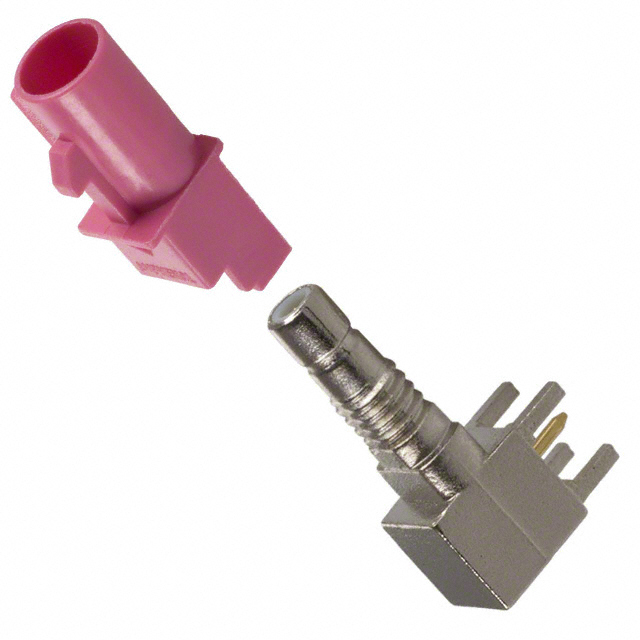

FA1-NHRP-PCB-9

Obsolete

Amphenol RF

CONN FAKRA PLUG R/A 50 OHM PCB

Search across all available documentation for this part.

Obsolete

Amphenol RF

CONN FAKRA PLUG R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NHRP-PCB-9

Body Finish	Tin
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code H
Frequency - Max [Max]	6000 MHz
Housing Color	Violet, Heather
Impedance	50 Ohms
Includes	1 Connector, 1 Housing
Insertion Loss	0.3 dB
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Features	Frequency - Max [Max]	Contact Termination	Connector Style	Mounting Type	Impedance	Dielectric Material	Center Contact Plating	Housing Color	Fastening Type	Shield Termination	Insertion Loss	Body Finish	Number of Ports	Body Material	Includes	Center Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol RF FA1-NHRP-PCB-9	Code H	6000 MHz	Solder	Fakra SMB	Through Hole Right Angle	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Heather Violet	Locking Ramp	Solder	0.3 dB	Tin	1	Zinc Die Cast	1 Connector 1 Housing	Brass	Male Pin Plug	125 °C	-65 ░C
Amphenol RF FA1-NHRP-PCBT10	Code H	6000 MHz	Solder	Fakra SMB	Through Hole Right Angle	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Heather Violet	Locking Ramp	Solder		Tin	1	Zinc Die Cast		Brass	Male Pin Plug	100 °C	-40 °C
Amphenol RF FA1-NHRP-PCB-8	Code H	6000 MHz	Solder	Fakra SMB	Through Hole Right Angle	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Heather Violet	Locking Ramp	Solder	0.3 dB	Tin	1	Zinc Die Cast	1 Connector 1 Housing	Brass	Male Pin Plug	125 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
