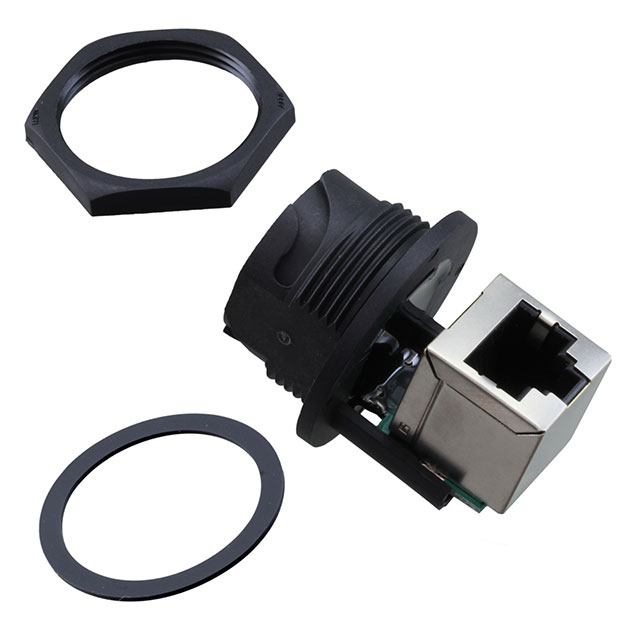

RDP-5SPFFV-TCU7001
ActiveAmphenol LTW
RJ45 D SIZE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDP-5SPFFV-TCU7001
ActiveAmphenol LTW
RJ45 D SIZE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDP-5SPFFV-TCU7001 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Features | Circular Bayonet Coupling |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Bulkhead, Right Angle, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat5e |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.38 | |
| 10 | $ 10.97 | |||
| 30 | $ 10.55 | |||
| 50 | $ 10.13 | |||
| 100 | $ 9.56 | |||
| 250 | $ 8.72 | |||
| 500 | $ 8.16 | |||
| 1000 | $ 7.48 | |||
Description
General part information
RDP-5SPFFV Series
Jack Modular Connector Shielded Cat5e
