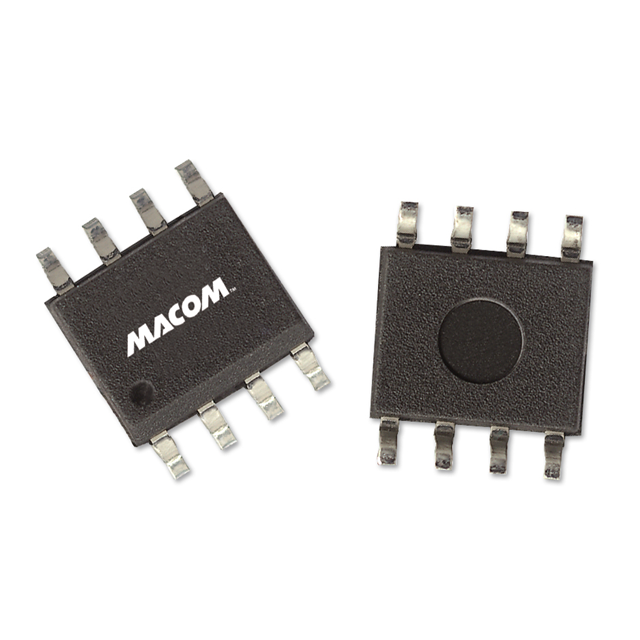

MAPDCC0006TR
ActiveMACOM Technology Solutions
POWER DIVIDER,3 WAY.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAPDCC0006TR
ActiveMACOM Technology Solutions
POWER DIVIDER,3 WAY.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAPDCC0006TR |
|---|---|
| Frequency [Max] | 1.99 GHz |
| Frequency [Min] | 1.85 GHz |
| Insertion Loss | 1 dB |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Size / Dimension [x] | 4.9 mm |
| Size / Dimension [x] | 0.193 in |
| Size / Dimension [y] | 3.9 mm |
| Size / Dimension [y] | 0.154 in |
| Size / Dimension [z] | 1.75 mm |
| Size / Dimension [z] | 0.069 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.99 | |
| Digi-Reel® | 1 | $ 10.99 | ||
| Tape & Reel (TR) | 1000 | $ 6.43 | ||
Description
General part information
MAPDCC0006 Series
RF Power Divider 1.85 GHz ~ 1.99 GHz Isolation (Min) 12dB, 2 VSWR (Max), 14° Imbalance (Max) 8-SOIC (0.154", 3.90mm Width)
