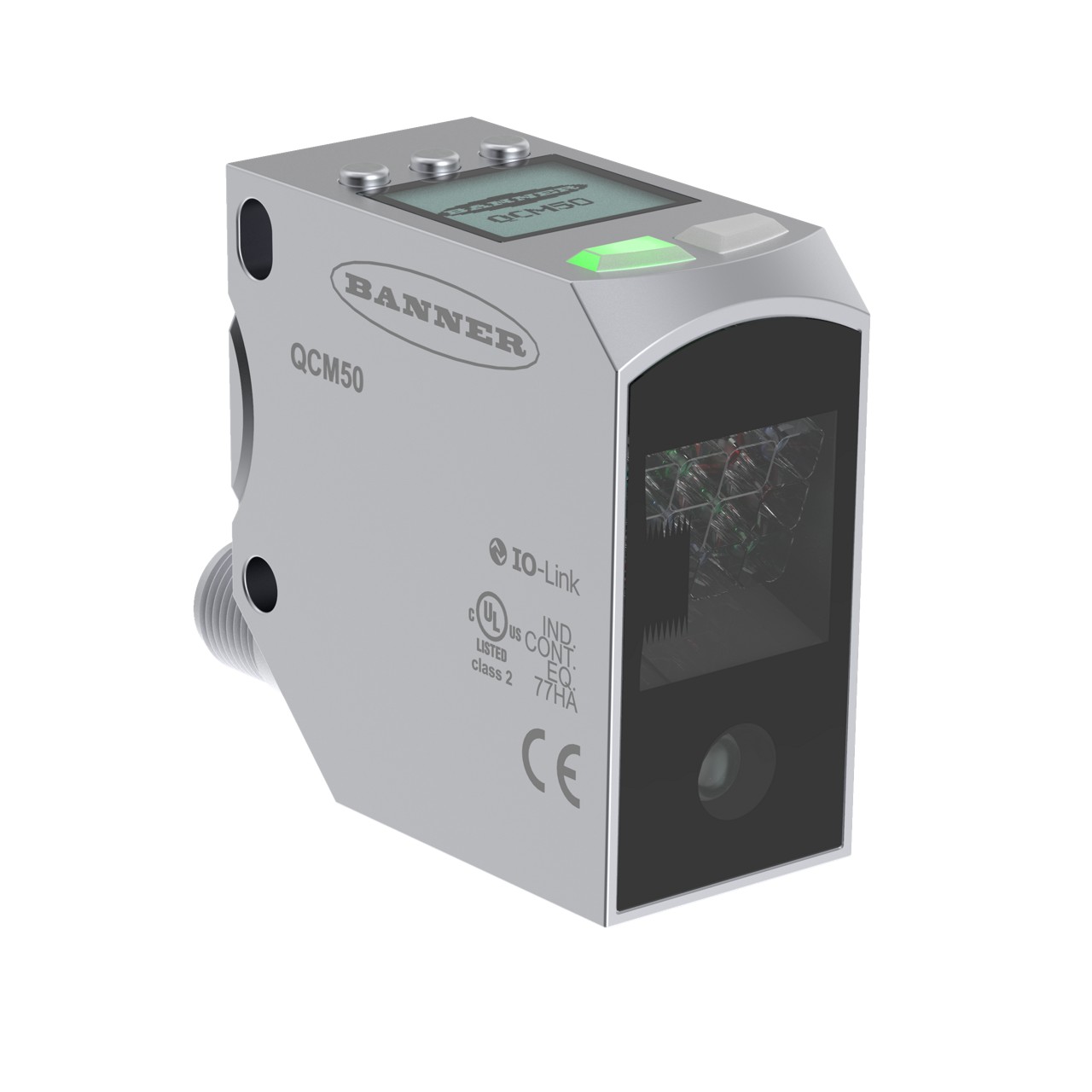

QCM50-K1D60-Q8-4

Active

BANNER ENGINEERING

QCM50 SERIES: COLOR SENSORRA

Search across all available documentation for this part.

Active

BANNER ENGINEERING

QCM50 SERIES: COLOR SENSORRA

Technical Specifications

Parameters and characteristics for this part

Part	Current - Supply (Max) [Max]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output	Response Time	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Ingress Protection	Connection Method	Light Source	Adjustment Type	Output Configuration
BANNER ENGINEERING QCM50-K1D60-Q8-4	60 mA	Module	30 VDC	18 V	55 °C	-20 C	NPN PNP
BANNER ENGINEERING QCM50-K3D60-Q8-5			30 VDC	10 VDC	55 °C	-20 C		180 µs	15 cm	0.79 "	5.91 "	20 mm	IP67 IP69K	Connector	White LED	Adjustable	NPN/PNP
BANNER ENGINEERING QCM50-K3D25-Q8-5			30 VDC	10 VDC	55 °C	-20 C		180 µs	32 mm	0.709 "	1.26 in	18 mm	IP67 IP69K	Connector	White LED	Adjustable	NPN/PNP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 880.01
Newark	Each	1	$ 898.00

General part information

QCM50 SERIES: COLOR SENSORRA

Technical documentation and resources
