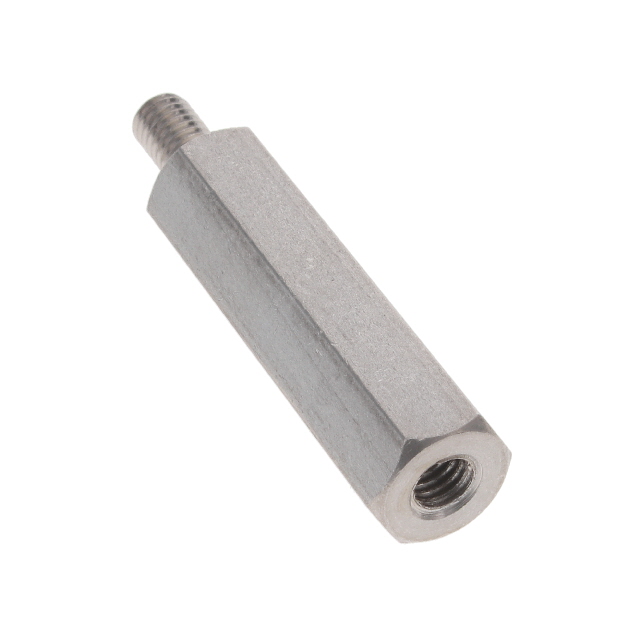

4638-1032-SS-20
ActiveRAF Electronic Hardware
3/8 HEX X 1-3/8 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
4638-1032-SS-20
ActiveRAF Electronic Hardware
3/8 HEX X 1-3/8 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4638-1032-SS-20 |
|---|---|
| Between Board Height | 1.375 in |
| Between Board Height | 34.93 mm |
| Diameter - Outside | 0.375 in, 9.53 mm |
| Diameter - Outside [custom] | 0.375 in |
| Gender | Male, Female |
| Length - Overall [x] | 1.75 in |
| Length - Overall [x] | 44.45 mm |
| Material | Stainless Steel |
| Plating | Passivated |
| Screw, Thread Size | #10-32 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.02 | |
| 5 | $ 21.41 | |||
| 10 | $ 20.18 | |||
| 25 | $ 19.57 | |||
| 50 | $ 18.35 | |||
| 100 | $ 17.74 | |||
| 250 | $ 16.51 | |||
| 500 | $ 15.90 | |||
Description
General part information
4638-1032 Series
Hex Standoff Threaded #10-32 Stainless Steel 1.375" (34.93mm)
