Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 89.00 | |
General part information

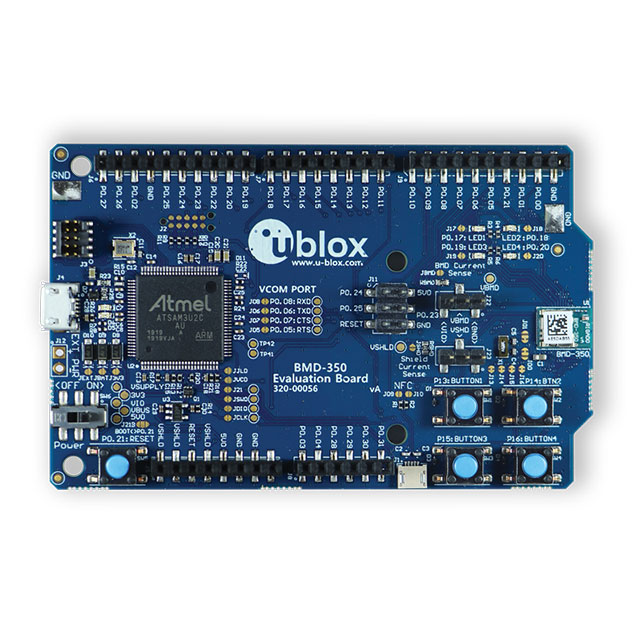

- BMD-350 Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) 2.4GHz Evaluation Board
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | BMD-350-EVAL | BMD-350 Series |
|---|---|---|
| Antenna Type | - | Integrated, Trace |
| Current - Receiving | - | 11.7 mA |
| Current - Receiving | - | 5.4 mA |
| Current - Transmitting | - | 5.3 mA |
| Current - Transmitting | - | 16.6 mA |
| Data Rate | - | 2 Mbps |
| For Use With/Related Products | BMD-350 | BMD-350 |
| Frequency | 2.4 GHz | 2.4 GHz |
| Modulation | - | GFSK |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | Module |
| Power - Output | - | 4 dBm |
| Protocol | - | Bluetooth v5.0 |
| RF Family/Standard | - | Bluetooth |
| Serial Interfaces | - | SPI, I2C, I2S, UART |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Type | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) |
| Utilized IC / Part | - | nRF52832 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 1.7 V |
RF TXRX MOD BT TH SMD
| Part | Current - Receiving [Max] | Current - Receiving [Min] | Current - Transmitting [Min] | Current - Transmitting [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Modulation | Serial Interfaces | Utilized IC / Part | Antenna Type | Package / Case | RF Family/Standard | Operating Temperature [Max] | Operating Temperature [Min] | Power - Output | Data Rate | Protocol | Frequency | For Use With/Related Products | Supplied Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
u-blox BMD-350-A-R | 11.7 mA | 5.4 mA | 5.3 mA | 16.6 mA | 3.6 V | 1.7 V | Surface Mount | GFSK | I2C, I2S, SPI, UART | nRF52832 | Integrated, Trace | Module | Bluetooth | 85 °C | -40 °C | 4 dBm | 2 Mbps | Bluetooth v5.0 | 2.4 GHz | |||
u-blox BMD-350-EVAL | 2.4 GHz | BMD-350 | Board(s), Cable(s) | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) |
