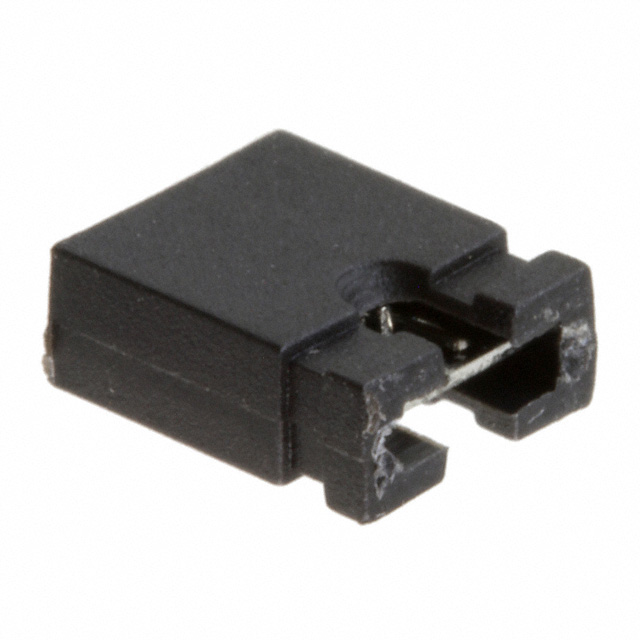

M7582-46

Active

Harwin Inc.

OPEN SHUNT, SOCKET, 2POS, 2.54MM

Search across all available documentation for this part.

Active

Harwin Inc.

OPEN SHUNT, SOCKET, 2POS, 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	M7582-46

Color	Black
Contact Finish	Tin
Gender	Female Sockets
Height [z]	6 mm
Height [z]	0.236 "
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

Part	Type	Housing Material	Color	Pitch [x]	Pitch [x]	Material Flammability Rating	Height [z]	Height [z]	Gender	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Harwin Inc. M7582-46	Open Top	Polybutylene Terephthalate (PBT) Glass Filled	Black	2.54 mm	0.1 in	UL94 V-0	6 mm	0.236 "	Female Sockets	Tin	1 x 2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Tin
