K85X-ED-9S-BRJ

Active

Kycon, Inc.

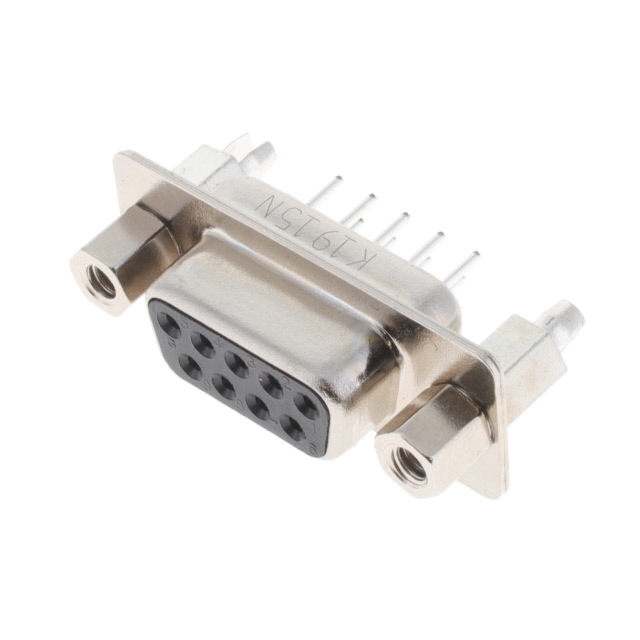

CONN D-SUB RCPT 9POS VERT SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG3LX-188S1-FF-GY1 Datasheet

K85X-ED-9S-BRJ

Active

Kycon, Inc.

CONN D-SUB RCPT 9POS VERT SOLDER

Deep-Dive with AI

DocumentsG3LX-188S1-FF-GY1 Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.15
		10	$ 5.22
		25	$ 4.90
		56	$ 4.62
		112	$ 4.40
		280	$ 4.13
		504	$ 3.96
		1008	$ 3.77
		2520	$ 3.54

Description

General part information

K85X-ED Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

G3LX-188S1-FF-GY1

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	K85X-ED-9S-BRJ	K85X-ED Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Form	Stamped	Stamped
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	2 A	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	-	Grounding Indents, Board Lock
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)	Board Side, 4-40, Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Termination	Solder	Solder
Voltage Rating	30 VDC	30 VDC

K85X-ED Series

CONN D-SUB PLUG 9POS VERT SOLDER

Part	Connector Type	Contact Form	Contact Finish	Contact Material	Shell Material, Finish	Features	Connector Style	Voltage Rating	Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Color	Current Rating (Amps)	Mounting Type	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Dielectric Material	Material Flammability Rating	Contact Finish Thickness
Kycon, Inc. K85X-ED-9P-BR30	Male Pins, Plug	Stamped	Gold	Brass	Nickel Plated, Steel	Board Lock, Grounding Indents	D-Sub	30 VDC	Solder	2	105 ░C	-55 °C	9	Black	2 A	Through Hole	Signal	DE, E	1	0.76 Ám	30 Áin	4-40, Board Side	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0
Kycon, Inc. K85X-ED-9S-BR30	Receptacle, Female Sockets	Stamped	Gold	Brass	Nickel Plated, Steel		D-Sub	30 VDC	Solder	2	105 ░C	-55 °C	9	Black	2 A	Through Hole	Signal	DE, E	1	0.76 Ám	30 Áin	4-40, Board Side	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0
Kycon, Inc. K85X-ED-9S-BRJ	Receptacle, Female Sockets	Stamped	Gold	Brass	Nickel Plated, Steel		D-Sub	30 VDC	Solder	2	105 ░C	-55 °C	9	Black	2 A	Through Hole	Signal	DE, E	1			Board Side (4-40), Mating Side, Female Screwlock (4-40)	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	Flash
Kycon, Inc. K85X-ED-9S-KJ30	Receptacle, Female Sockets	Stamped	Gold	Brass	Nickel Plated, Steel		D-Sub	30 VDC	Solder	2	105 ░C	-55 °C	9	Black	2 A	Through Hole	Signal	DE, E	1	0.76 Ám	30 Áin	Board Side (4-40), Mating Side, Female Screwlock (4-40)	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0
