13030-01MASLB

Active

KEMET

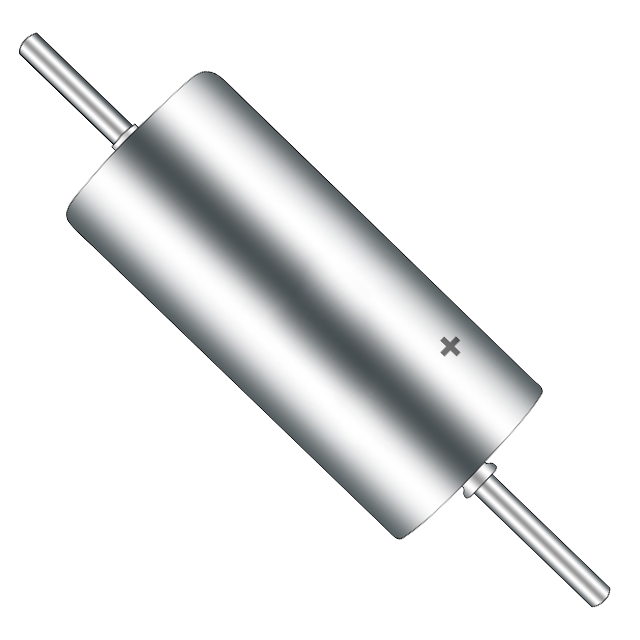

CAP TANT POLY 100UF 25V AXIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT POLY 100UF 25V AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	13030-01MASLB

Capacitance	100 µF
ESR (Equivalent Series Resistance)	190 mOhm
Features	General Purpose
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Can, Axial
Size / Dimension [diameter]	7.92 mm
Size / Dimension [diameter]	0.312 in
Size / Dimension [x]	0.641 in
Size / Dimension [x]	16.28 mm
Tolerance	20 %
Type	Hermetically Sealed
Voltage - Rated	25 VDC

CAP TANT POLY 100UF 25V AXIAL

Part	Type	Mounting Type	Features	Package / Case	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Capacitance	Manufacturer Size Code	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Tolerance
KEMET 13030-01MASLB	Hermetically Sealed	Through Hole	General Purpose	Axial, Can	7.92 mm	0.641 in	0.312 in	16.28 mm	190 mOhm	100 µF	B	2000 Hrs	105 ░C	-55 °C	25 VDC	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 µF Hermetically Sealed Tantalum Polymer Capacitor 25 V Axial, Can 190mOhm @ 100kHz
