805-066-07M9-10SPA

Active

Glenair

MIGHT MOUSE CONNECTOR

Search across all available documentation for this part.

Active

Glenair

MIGHT MOUSE CONNECTOR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	805-066-07M9-10SPA	805-066 Series

Connector Style	Standard	Standard
Convert From (Adapter End)	Male Pins, Female Sockets	Male Pins, Female Sockets
Convert To (Adapter End)	Male Pins, Female Sockets	Female Sockets, Male Pins
Current Rating (Amps)	5 A	5 - 23 A
Housing Color	Silver	Olive, Silver
Housing Finish	Electroless Nickel	Cadmium, Olive Drab Chromate over Cadmium, Electroless Nickel
Housing Material	Aluminum	Aluminum
Includes	1 Nut, 1 O-Ring, 1 Adapter	1 Nut, 1 O-Ring, 1 Adapter
Ingress Protection	Environment Sealed	Environment Sealed
Mounting Feature	Bulkhead - Nut	Bulkhead - Nut
Number of Positions (Convert From)	-	3 - 19
Number of Positions (Convert To)	10	3 - 19
Operating Temperature [Max]	200 °C	200 - 347 °F
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation (Convert From)	N (Normal)	N (Normal)
Orientation (Convert To)	N	N
Shell Size - Insert (Convert From) [Max]	10	7 - 23
Shell Size - Insert (Convert From) [Min]	9	8 - 15
Shell Size - Insert (Convert To)	-	7
Shell Size - Insert (Convert To)	-	15
Shell Size - Insert (Convert To) [Max] [custom]	10	10 - 23
Shell Size - Insert (Convert To) [Min] [custom]	9	8 - 11
Shielding	Shielded	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2044.18

MIGHTY MOUSE CONNECONNECTOR

Part	Orientation (Convert To)	Housing Color	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Housing Material	Housing Finish	Number of Positions (Convert To)	Shell Size - Insert (Convert To) [Max] [custom]	Shell Size - Insert (Convert To) [Min] [custom]	Ingress Protection	Number of Positions (Convert From)	Includes	Convert From (Adapter End)	Connector Style	Shell Size - Insert (Convert From) [Min]	Shell Size - Insert (Convert From) [Max]	Current Rating (Amps)	Mounting Feature	Orientation (Convert From)	Shell Size - Insert (Convert To) [Max] [custom]	Shell Size - Insert (Convert To) [Min] [custom]
Glenair 805-066-07NF11-19SPA	N	Olive	Female Sockets	-65 ░C	347 °F	Shielded	Aluminum	Cadmium	19	19	11	Environment Sealed	19	1 Adapter, 1 Nut, 1 O-Ring	Male Pins	Standard	11	19	5 A	Bulkhead - Nut	N (Normal)
Glenair 805-066-07NF8-23PSA	N	Olive	Female Sockets	-65 ░C	347 °F	Shielded	Aluminum	Cadmium, Olive Drab Chromate over Cadmium	3	23	8	Environment Sealed	3	1 Adapter, 1 Nut, 1 O-Ring	Male Pins	Standard	8	23	7.5 A	Bulkhead - Nut	N (Normal)
Glenair 805-066-07M9-10SPA	N	Silver	Female Sockets, Male Pins	-65 ░C	200 °C	Shielded	Aluminum	Electroless Nickel	10	10	9	Environment Sealed		1 Adapter, 1 Nut, 1 O-Ring	Female Sockets, Male Pins	Standard	9	10	5 A	Bulkhead - Nut	N (Normal)
Glenair 805-066-07NF15-7PSA	N	Olive	Female Sockets	-65 ░C	347 °F	Shielded	Aluminum	Cadmium, Olive Drab Chromate over Cadmium	7			Environment Sealed	7	1 Adapter, 1 Nut, 1 O-Ring	Male Pins	Standard	15	7	23 A	Bulkhead - Nut	N (Normal)	7	15

General part information

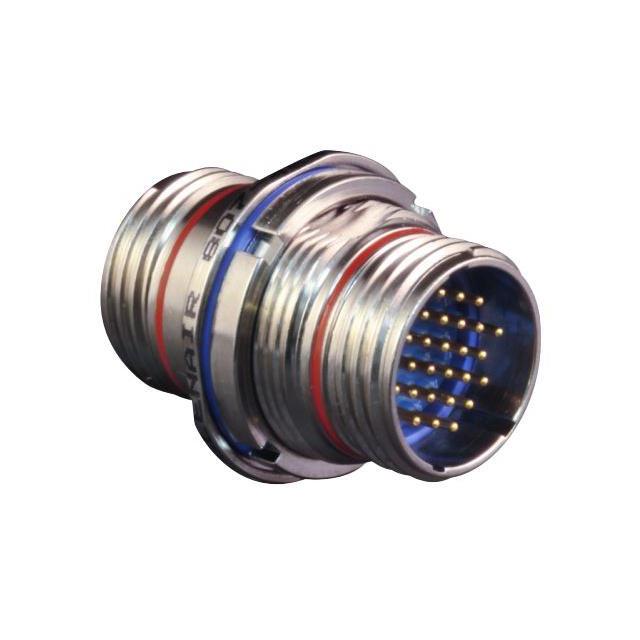

Circular Connector Standard 10/10 Female Sockets/Male Pins Panel Mount
