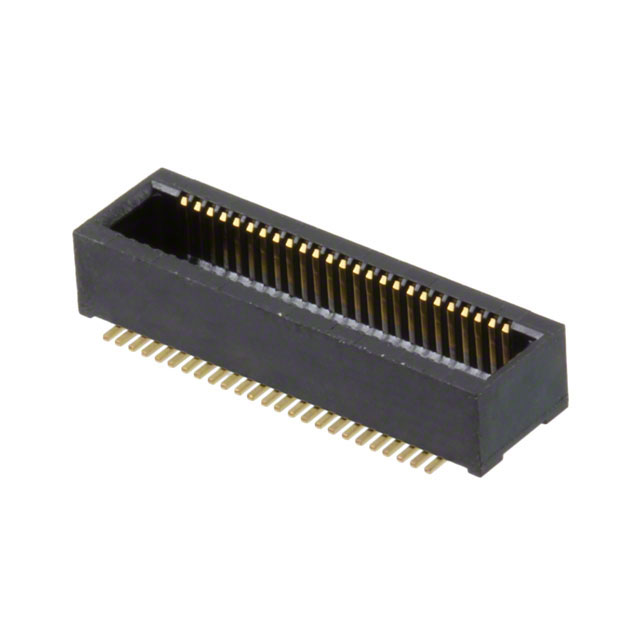

WR-50P-VF-N1

Active

JAE Electronics

CONN PLUG 50POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Number of Positions	Mounting Type	Height Above Board	Height Above Board
JAE Electronics WR-50P-VF50-N1	Outer Shroud Contacts Plug	2	4 Áin	0.1 Ám	4 mm	0.157 "	0.5 mm	0.02 in	5 mm 5.5 mm 8 mm	Gold	50	Surface Mount
JAE Electronics WR-50P-VF-N1	Outer Shroud Contacts Plug	2	4 Áin	0.1 Ám			0.5 mm	0.02 in	4 mm 4.5 mm 7 mm	Gold	50	Surface Mount	0.118 in	3 mm
JAE Electronics WR-50P-VF60-N1	Outer Shroud Contacts Plug	2	4 Áin	0.1 Ám	5 mm	0.197 in	0.5 mm	0.02 in	6 mm 6.5 mm 9 mm	Gold	50	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	110	$ 4.87

General part information

50 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
