ZL30237GGG2

Active

Microchip Technology

CLOCK GENERATOR 750MHZ-OUT 100-PIN CABGA TRAY

Search across all available documentation for this part.

Active

Microchip Technology

CLOCK GENERATOR 750MHZ-OUT 100-PIN CABGA TRAY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZL30237GGG2	ZL30237 Series

	-	-
Differential - Input:Output	No/Yes	No/Yes
Frequency - Max [Max]	750 MHz	750 MHz
Input	Crystal, Clock	Crystal, Clock
Main Purpose	Fibre Channel, Memory, PCI Express (PCIe), Ethernet	Fibre Channel, Memory, PCI Express (PCIe), Ethernet
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	LVPECL, LVCMOS	LVPECL, LVCMOS

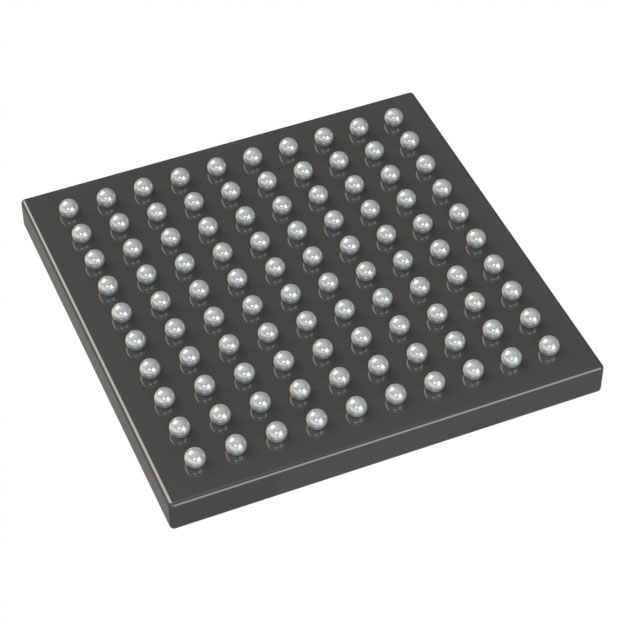

Package / Case	100-LBGA	100-LBGA
PLL	False	False
Ratio - Input:Output	1:12	1:12
Supplier Device Package	100-LBGA (11x11)	100-LBGA (11x11)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CLOCK GENERATOR 750MHZ-OUT 100-PIN CABGA TRAY

Part	Operating Temperature [Max]	Operating Temperature [Min]	PLL	Main Purpose	Input	Package / Case	Ratio - Input:Output	Output	Frequency - Max [Max]	Differential - Input:Output	Mounting Type	Supplier Device Package	Number of Circuits
Microchip Technology ZL30237GGG2	85 °C	-40 °C		Ethernet, Fibre Channel, Memory, PCI Express (PCIe)	Clock, Crystal	100-LBGA	1:12	LVCMOS, LVPECL	750 MHz	No/Yes	Surface Mount	100-LBGA (11x11)	1
Microchip Technology ZL30237GGG2

General part information

Ethernet, Fibre Channel, Memory, PCI Express (PCIe) IC 750MHz 1 Output 100-LBGA (11x11)
