PPM1630 PK309

Active

ALPHA WIRE

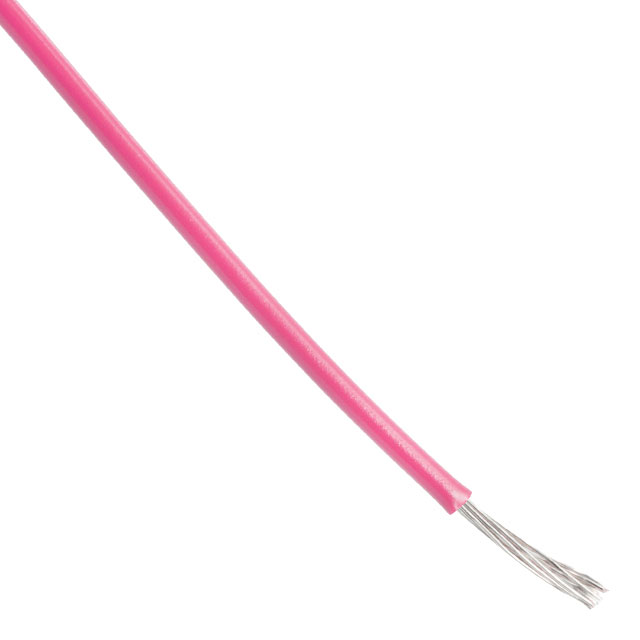

HOOK-UP STRND 16AWG PINK 4000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDearborn Marine Wire & Cable Catalog Datasheet

PPM1630 PK309

Active

ALPHA WIRE

HOOK-UP STRND 16AWG PINK 4000'

Deep-Dive with AI

DocumentsDearborn Marine Wire & Cable Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PPM1630 Series

16 AWG Hook-Up Wire 26/30 Pink 600V 4000' (1219.2m)

Documents

Technical documentation and resources

Dearborn Marine Wire & Cable Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PPM1630 PK309	PPM1630 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	30 AWG	30 AWG
Conductor Strand [custom]	26	26
Features	Oil Resistant	Oil Resistant
Jacket (Insulation) Diameter	0.122 in	0.122 in
Jacket (Insulation) Diameter	3.1 mm	3.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.8 mm	0.8 mm
Jacket (Insulation) Thickness	0.031 in	0.031 in
Jacket Color	Pink	Black, Red, Brown, Green, Pink
Length	-	1000 ft
Length	-	304.8 m
Length [x]	1219.2 m	30.5 - 1219.2 m
Length [x]	4000 ft	100 - 4000 ft
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-20 C	-20 C
Ratings	UL Style 1015/1230	UL Style 1015/1230
Voltage	600 V	600 V
Wire Gauge	16 AWG	16 AWG

PPM1630 Series

HOOK-UP STRND 16AWG BLACK 4000'

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Features	Length [x]	Length [x]	Length	Length
ALPHA WIRE PPM1630 BK309	-20 C	105 ░C	Black	Copper, Tinned	0.122 in	3.1 mm	Poly-Vinyl Chloride (PVC)	600 V	0.8 mm	0.031 in	Hook-Up	16 AWG	30 AWG	26	UL Style 1015/1230	Oil Resistant	1219.2 m	4000 ft
ALPHA WIRE PPM1630 RD001	-20 C	105 ░C	Red	Copper, Tinned	0.122 in	3.1 mm	Poly-Vinyl Chloride (PVC)	600 V	0.8 mm	0.031 in	Hook-Up	16 AWG	30 AWG	26	UL Style 1015/1230	Oil Resistant			1000 ft	304.8 m
ALPHA WIRE PPM1630 BK002	-20 C	105 ░C	Black	Copper, Tinned	0.122 in	3.1 mm	Poly-Vinyl Chloride (PVC)	600 V	0.8 mm	0.031 in	Hook-Up	16 AWG	30 AWG	26	UL Style 1015/1230	Oil Resistant	152.4 m	500 '
ALPHA WIRE PPM1630 BR309	-20 C	105 ░C	Brown	Copper, Tinned	0.122 in	3.1 mm	Poly-Vinyl Chloride (PVC)	600 V	0.8 mm	0.031 in	Hook-Up	16 AWG	30 AWG	26	UL Style 1015/1230	Oil Resistant	1219.2 m	4000 ft
ALPHA WIRE PPM1630 GR001	-20 C	105 ░C	Green	Copper, Tinned	0.122 in	3.1 mm	Poly-Vinyl Chloride (PVC)	600 V	0.8 mm	0.031 in	Hook-Up	16 AWG	30 AWG	26	UL Style 1015/1230	Oil Resistant			1000 ft	304.8 m
ALPHA WIRE PPM1630 BK005	-20 C	105 ░C	Black	Copper, Tinned	0.122 in	3.1 mm	Poly-Vinyl Chloride (PVC)	600 V	0.8 mm	0.031 in	Hook-Up	16 AWG	30 AWG	26	UL Style 1015/1230	Oil Resistant	30.5 m	100 ft
ALPHA WIRE PPM1630 PK309	-20 C	105 ░C	Pink	Copper, Tinned	0.122 in	3.1 mm	Poly-Vinyl Chloride (PVC)	600 V	0.8 mm	0.031 in	Hook-Up	16 AWG	30 AWG	26	UL Style 1015/1230	Oil Resistant	1219.2 m	4000 ft
