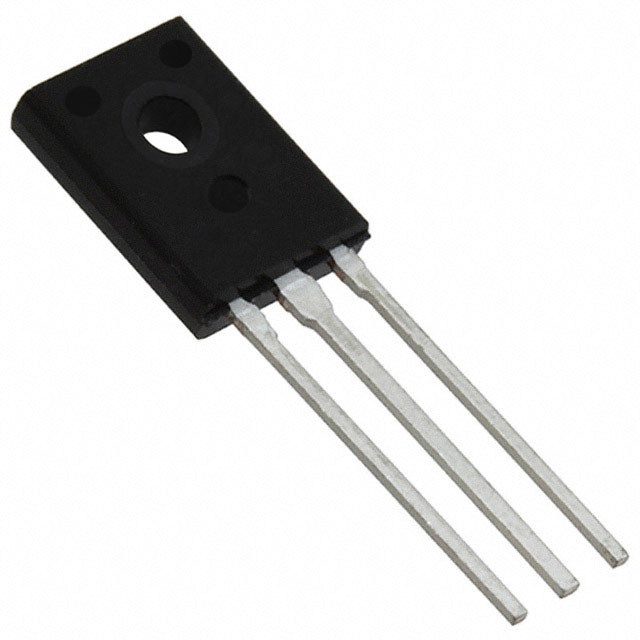

2SB1151-O-BP

Active

Micro Commercial Co

TRANS PNP 60V 5A TO-126

Search across all available documentation for this part.

Active

Micro Commercial Co

TRANS PNP 60V 5A TO-126

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2SB1151-O-BP	2SB1151 Series

Current - Collector (Ic) (Max)	5 A	5 A
Current - Collector Cutoff (Max) [Max]	10 µA	10 µA
DC Current Gain (hFE) (Min) @ Ic, Vce	-	200 hFE
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100	100
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Power - Max [Max]	1.25 W	1.25 W
Supplier Device Package	TO-126	TO-126
Transistor Type	PNP	PNP
Vce Saturation (Max) @ Ib, Ic	300 mV	300 mV
Voltage - Collector Emitter Breakdown (Max)	60 V	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TRANS PNP 60V 5A TO126

Part	Voltage - Collector Emitter Breakdown (Max)	Power - Max [Max]	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Mounting Type	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max)	Vce Saturation (Max) @ Ib, Ic	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
Micro Commercial Co 2SB1151-G-BP	60 V	1.25 W	TO-126	10 µA	Through Hole	PNP	200 hFE	-55 °C	150 °C	5 A	300 mV	TO-126-3, TO-225AA
Micro Commercial Co 2SB1151-O-BP	60 V	1.25 W	TO-126	10 µA	Through Hole	PNP		-55 °C	150 °C	5 A	300 mV	TO-126-3, TO-225AA	100

General part information

Bipolar (BJT) Transistor PNP 60 V 5 A 1.25 W Through Hole TO-126
