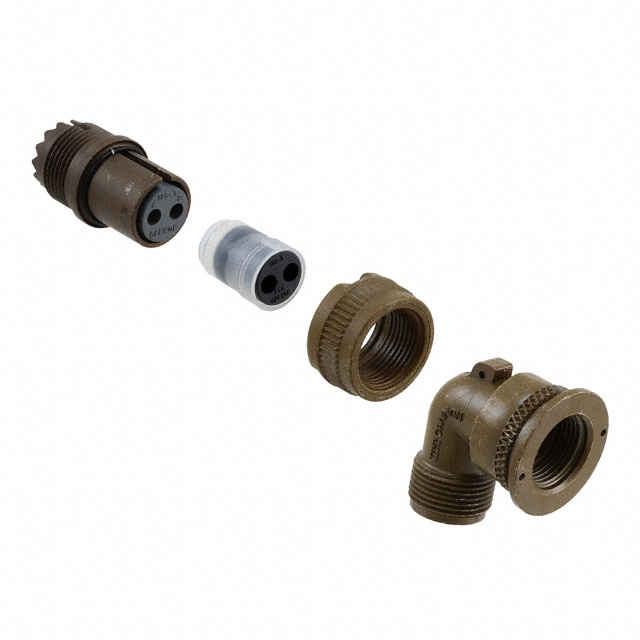

MS3108R12S-3S

Active

ITT Cannon, LLC

CONN PLUG FMALE 2P SOLDER CUP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG FMALE 2P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108R12S-3S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	12S-3
Voltage Rating	700 VDC, 500 VAC

Part	Connector Type	Primary Material	Shell Finish	Orientation	Number of Positions	Contact Finish - Mating	Shell Material	Qualification	Ingress Protection	Shell Size - Insert	Voltage Rating	Grade	Current Rating (Amps)	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color
ITT Cannon, LLC MS3108R12S-3S	Female Sockets Plug	Metal	Olive Drab Cadmium	N	2	Silver	Aluminum Alloy	MIL-DTL-5015	Environment Resistant	12S-3	500 VAC 700 VDC	Military	22 A	Backshell Coupling Nut	Free Hanging (In-Line) Right Angle	-55 °C	125 °C	Olive Drab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets Solder Cup
