LDD-1500 Series

Part	Mounting Type	Number of Outputs	Current - Output (Max)	Features	Termination Style	Dimming	Approval Agency	Voltage - Input (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Type	Voltage - Output (Min)	Voltage - Output (Max)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Efficiency	Ratings	Topology	Voltage - Input (Max)	Package Leads	Package Name
MEAN WELL USA Inc. LDD-1500HW	Chassis Mount	1	1.5 A	OTP Remote On/Off SCP	Wire Leads	PWM	CE	9 V	-40 °C	85 °C	Constant Current	2 V	46 V	0.48 in	0.8 in	1.25 in	97 %	IP67	Buck	52 V

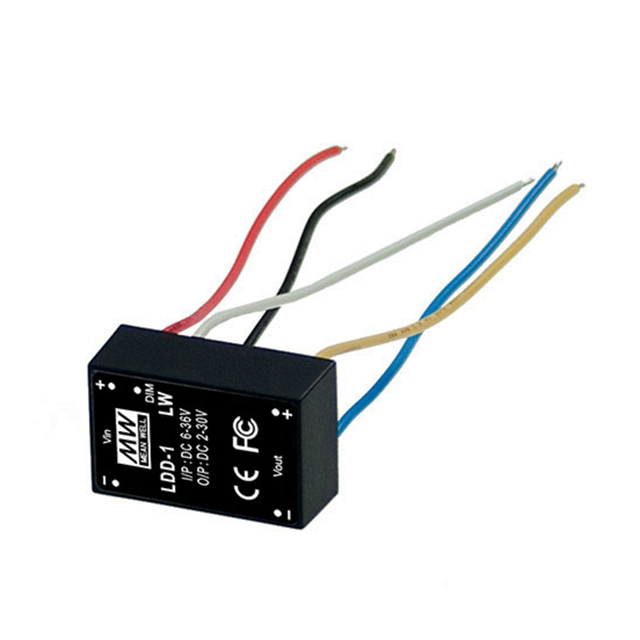

MEAN WELL USA Inc. LDD-1500LW	Chassis Mount	1	1.5 A	OTP Remote On/Off SCP	Wire Leads	PWM	CE	6 V	-40 °C	85 °C	Constant Current	2 V	30 V	0.48 in	0.8 in	1.25 in	95 %	IP67	Buck	36 V
MEAN WELL USA Inc. LDD-1500L	Through Hole	1	1.5 A	Remote On/Off SCP		Analog PWM	CE	6 V	-40 °C	71 °C	Constant Current	2 V	30 V	0.48 in	0.8 in	1.25 in	95 %		Buck	36 V	9 Leads	24-DIP Module
MEAN WELL USA Inc. LDD-1500LS	Surface Mount	1	1.5 A	Remote On/Off SCP		Analog PWM	CE	6 V	-40 °C	71 °C	Constant Current	2 V	30 V	0.45 in	0.8 in	1.25 in	95 %		Buck	36 V	18 Leads	24-SMD Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
