5439X5 0101000

Active

Belden Inc.

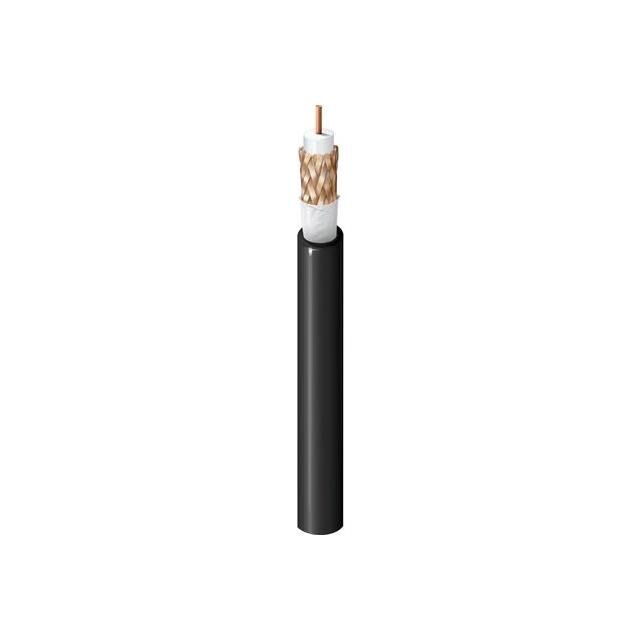

CABLE COAXIAL RG-59 20AWG 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAXIAL RG-59 20AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	5439X5 0101000

Cable Group	RG-59
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.145 "
Dielectric Diameter [diameter]	3.68 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	CCTV
VoP, Velocity of Propagation	83
Wire Gauge	20 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length	Length	Usage	Jacket (Insulation) Material	Shield Material	Shield Type	Dielectric Material	Cable Group	Shield Coverage	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Wire Gauge	Cable Type	Impedance	Conductor Strand	Jacket Color
Belden Inc. 5439X5 0101000	6.2 mm	0.244 in	-30 ░C	75 ░C	Copper Bare	304.8 m	1000 ft	CCTV	Poly-Vinyl Chloride (PVC)	Copper Bare	Braid	Foam Polyethylene (FPE)	RG-59	95 %	83	0.145 "	3.68 mm	20 AWG	Coaxial	75 Ohms	Solid	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 545.25

General part information

Coaxial Cable 20 AWG RG-59 1000.0' (304.80m) 75 Ohms
