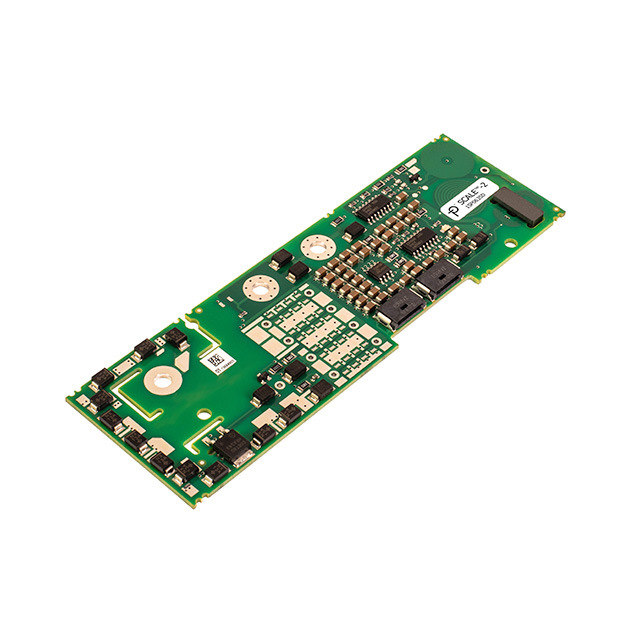

1SP0635D2S1-33

Active

Power Integrations

IGBT DRIVER, 23.5V-26.5V, MODULE ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

Power Integrations

IGBT DRIVER, 23.5V-26.5V, MODULE ROHS COMPLIANT: NO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High-Side or Low-Side Gate Driver IC Module

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1SP0635D2S1-33	1SP0635 Series

Channel Type	Single	Single
Current - Peak Output (Source, Sink) [custom]	35 A	35 A
Current - Peak Output (Source, Sink) [custom]	35 A	35 A
Driven Configuration	High-Side, Low-Side	High-Side, Low-Side
Gate Type	IGBT	IGBT
High Side Voltage - Max (Bootstrap) [Max]	3300 V	1700 - 3300 V
Mounting Type	Surface Mount	Surface Mount, Chassis Mount
Number of Drivers	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Rise / Fall Time (Typ) [custom]	30 ns	30 ns
Rise / Fall Time (Typ) [custom]	9 ns	9 ns
Supplier Device Package	Module	Module
Voltage - Supply [Max]	15.5 V	15.5 V
Voltage - Supply [Min]	14.5 V	14.5 V

IC GATE DRVR HI/LOW SIDE MODULE

Part	Driven Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Drivers	High Side Voltage - Max (Bootstrap) [Max]	Channel Type	Gate Type
Power Integrations 1SP0635V2M1-25	High-Side, Low-Side	35 A	35 A	Module	85 °C	-40 °C	Module	14.5 V	15.5 V	Surface Mount	30 ns	9 ns	1	2500 V	Single	IGBT
Power Integrations 1SP0635V2M1-17	High-Side, Low-Side	35 A	35 A	Module	85 °C	-40 °C	Module	14.5 V	15.5 V	Surface Mount	30 ns	9 ns	1	1700 V	Single	IGBT
Power Integrations 1SP0635D2S1-33	High-Side, Low-Side	35 A	35 A	Module	85 °C	-40 °C	Module	14.5 V	15.5 V	Surface Mount	30 ns	9 ns	1	3300 V	Single	IGBT
Power Integrations 1SP0635D2S1-17	High-Side, Low-Side	35 A	35 A	Module	85 °C	-40 °C	Module	14.5 V	15.5 V	Surface Mount	30 ns	9 ns	1	1700 V	Single	IGBT
Power Integrations 1SP0635V2M1-5SNA1200E330100	High-Side, Low-Side	35 A	35 A	Module	85 °C	-40 °C	Module	14.5 V	15.5 V	Chassis Mount	30 ns	9 ns	1		Single	IGBT
