1010-1511-000

Active

Radiall USA, Inc.

SMC M RA NA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M RA NA

Technical Specifications

Parameters and characteristics for this part

Specification	1010-1511-000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

SMC M RA NA

Part	Housing Color	Impedance	Frequency - Max [Max]	Dielectric Material	Connector Type	Shield Termination	Number of Ports	Body Finish	Mating Cycles	Body Material	Insertion Loss	Center Contact Plating	Connector Style	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type
Radiall USA, Inc. 1010-1511-000	Gold	50 Ohms	10 GHz	Polytetrafluoroethylene (PTFE)	Jack, Male Pin	Solder	1	Gold	500	Brass	0.5 dB	Gold	SMC	Brass	-65 ░C	165 °C	Solder	Through Hole, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

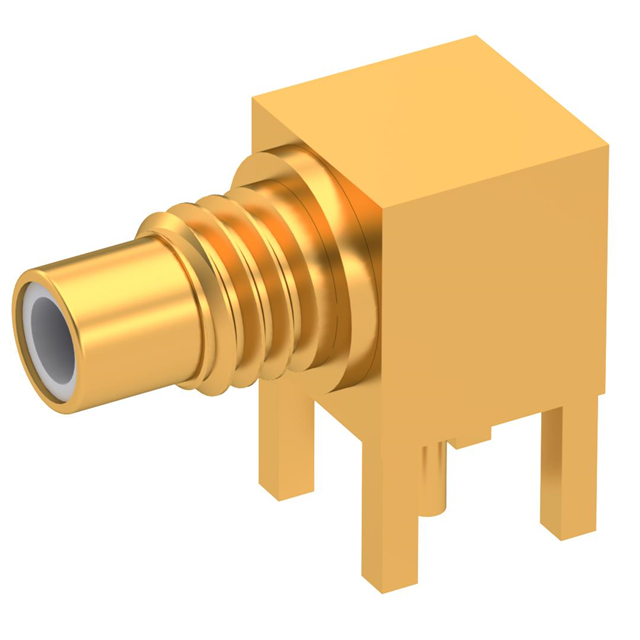

SMC Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
