IQS269AD0CSR

Obsolete

Azoteq (Pty) Ltd

TOUCH CONTROLLER

Search across all available documentation for this part.

Obsolete

Azoteq (Pty) Ltd

TOUCH CONTROLLER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IQS269AD0CSR	IQS269 Series

Input Type	Capacitive, Inductive	Capacitive, Inductive
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C	I2C
Package / Case	WLCSP, 16-UFBGA	16-WFQFN Exposed Pad, WLCSP, 16-UFBGA

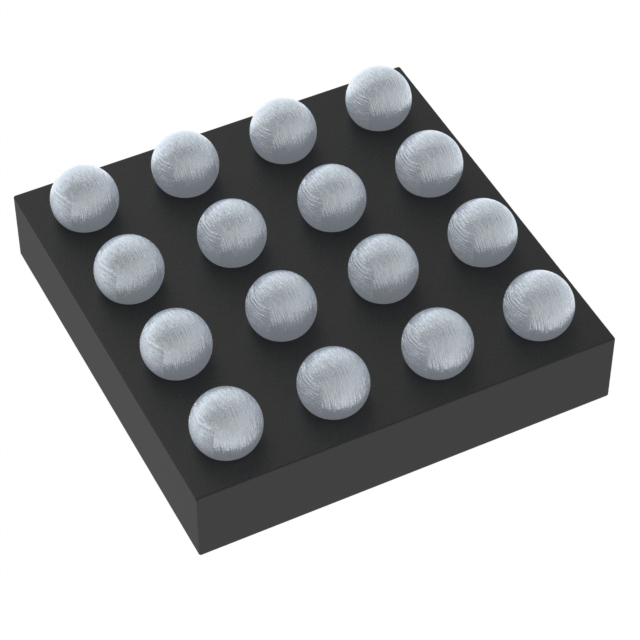

Supplier Device Package	16-WLCSP	16-QFN (3x3), 16-WLCSP
Supplier Device Package [x]	1.62	1.62
Supplier Device Package [y]	1.62	1.62
Type	Capacitive Touch Screen Controller	Capacitive Touch Screen Controller

8-CHANNEL CAPACITIVE TOUCH, HALL

Part	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Output Type	Supplier Device Package	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]
Azoteq (Pty) Ltd IQS269A00QNR	Capacitive, Inductive	85 °C	-40 °C	Capacitive Touch Screen Controller	Surface Mount	I2C	16-QFN (3x3)	16-WFQFN Exposed Pad
Azoteq (Pty) Ltd IQS269AD0CSR	Capacitive, Inductive	85 °C	-40 °C	Capacitive Touch Screen Controller	Surface Mount	I2C	16-WLCSP	16-UFBGA, WLCSP	1.62	1.62

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOUCH CONTROLLER

Technical documentation and resources
