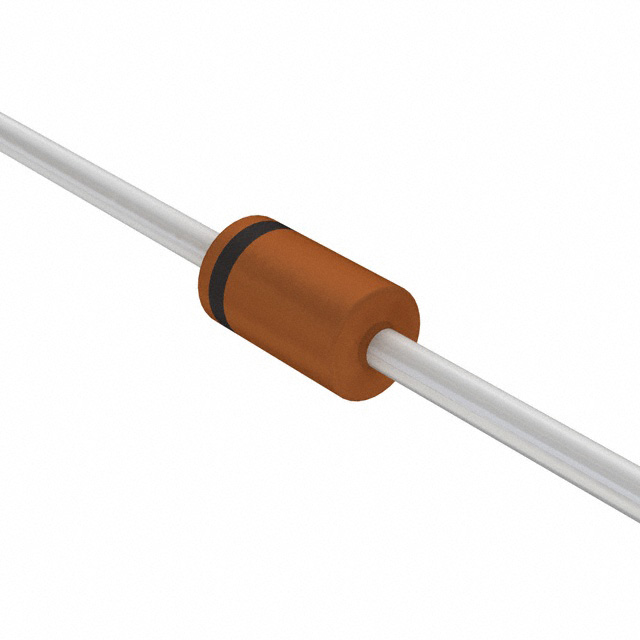

1SS133M R0G

Active

Taiwan Semiconductor Corporation

DIODE GEN PURP 90V 150MA DO34

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE GEN PURP 90V 150MA DO34

Technical Specifications

Parameters and characteristics for this part

Specification	1SS133M R0G

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	500 nA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	DO-34, DO-204AG, Axial
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	DO-34
Technology	Standard

Part	Capacitance @ Vr, F	Mounting Type	Current - Average Rectified (Io)	Package / Case	Speed	Speed	Reverse Recovery Time (trr)	Technology	Operating Temperature - Junction [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature - Junction
Taiwan Semiconductor Corporation 1SS133M R0G	4 pF	Through Hole	150 mA	Axial DO-204AG DO-34	Any Speed	200 mA	4 ns	Standard	175 °C	DO-34	500 nA
Taiwan Semiconductor Corporation 1SS133M	4 pF	Through Hole	150 mA	Axial DO-204AG DO-34	Any Speed	200 mA	4 ns	Standard		DO-34	500 nA	175 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 90 V 150mA Through Hole DO-34
