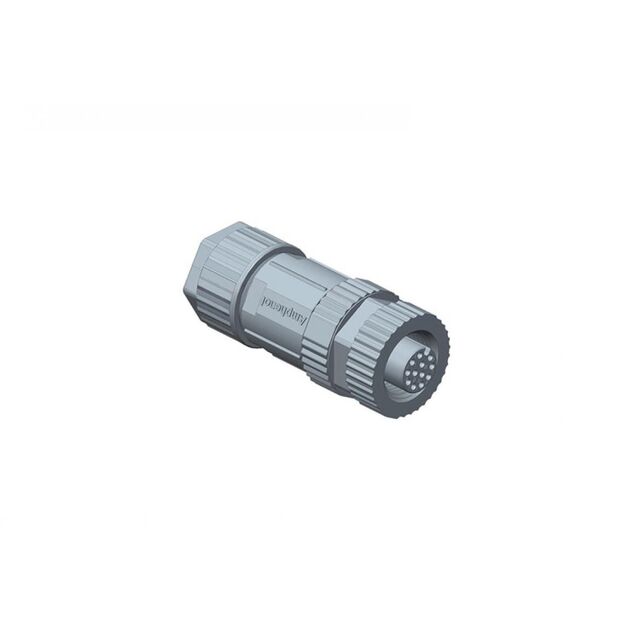

M12A-10BFFA-SL7001
ActiveAmphenol LTW
CONNECTOR: M12; 1.5A; 30V; PLUG; FEMALE; PIN: 10; IP67,IP68; STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12A-10BFFA-SL7001
ActiveAmphenol LTW
CONNECTOR: M12; 1.5A; 30V; PLUG; FEMALE; PIN: 10; IP67,IP68; STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-10BFFA-SL7001 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Min] [custom] | 4 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | M12-10 |
| Shielding | Unshielded |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M12A-10BFFA Series
10 Position Circular Connector Plug, Female Sockets Solder Cup
