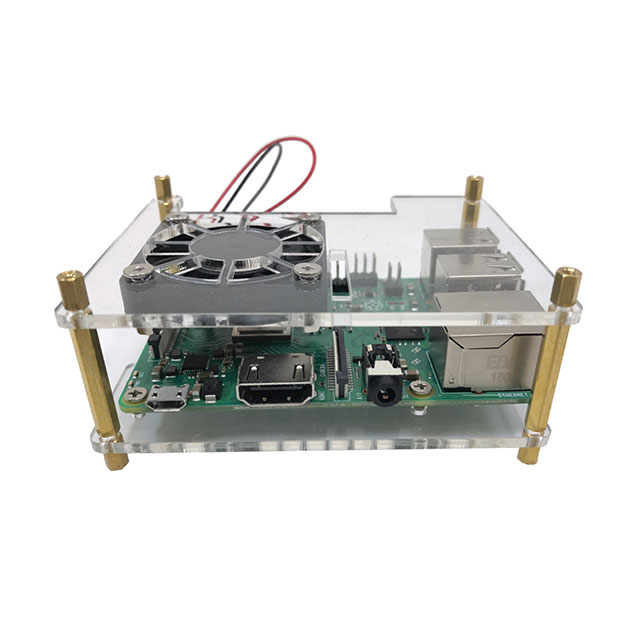

RAS-PCS06

Active

Micro Connectors, Inc.

CASE ACRYLIC CLR 3.540"LX2.750"W

Search across all available documentation for this part.

Active

Micro Connectors, Inc.

CASE ACRYLIC CLR 3.540"LX2.750"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RAS-PCS06	RAS-PC Series

Area (L x W)	62.8 cm˛	62.8 - 63.2 cm˛
Area (L x W)	9.73 in˛	9.73 - 9.8 in˛
Color	Clear	Clear
Container Type	Case	Case
Design	Cover Included, Hand Held	Cover Included, Hand Held, Split Sides
Height [z]	44.45 mm	44.45 - 143.6 mm
Height [z]	1.75 in	1.75 - 5.654 in
Material	Acrylic	Acrylic
Platform	Raspberry Pi 3A+, Raspberry Pi 1B+, Raspberry Pi 2B, Raspberry Pi Zero, Raspberry Pi Zero W, Raspberry Pi 4B, Raspberry Pi 3B, Raspberry Pi 3B+	Raspberry Pi 3A+, Raspberry Pi 1B+, Raspberry Pi 2B, Raspberry Pi Zero, Raspberry Pi Zero W, Raspberry Pi 4B, Raspberry Pi 3B, Raspberry Pi 3B+, B, B+, Raspberry Pi 3A
Size / Dimension [x]	3.54 in	3.54 - 3.579 in
Size / Dimension [x]	89.92 mm	89.92 - 90.9 mm
Size / Dimension [y]	69.85 mm	2.74 - 69.85 mm
Size / Dimension [y]	69.85 mm	69.6 - 69.85 mm

CASE ACRYLIC CLR 3.540"LX2.750"W

Part	Design	Area (L x W)	Area (L x W)	Platform	Color	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height [z]	Height [z]	Material
Micro Connectors, Inc. RAS-PCS06	Cover Included, Hand Held	62.8 cm˛	9.73 in˛	Raspberry Pi 1B+, Raspberry Pi 2B, Raspberry Pi 3A+, Raspberry Pi 3B, Raspberry Pi 3B+, Raspberry Pi 4B, Raspberry Pi Zero, Raspberry Pi Zero W	Clear	Case	3.54 in	89.92 mm	69.85 mm	69.85 mm	44.45 mm	1.75 in	Acrylic
Micro Connectors, Inc. RAS-PCS46	Hand Held, Split Sides	63.2 cm²	9.8 in²	B, B+, Raspberry Pi 3A, Raspberry Pi 4B, Raspberry Pi Zero W	Clear	Case	3.579 in	90.9 mm	2.74 "	69.6 mm	143.6 mm	5.654 in	Acrylic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Case Acrylic Clear Hand Held, Cover Included 3.540" L x 2.750" W (89.92mm x 69.85mm) X 1.750" (44.45mm)
