AA04S1500A

Active

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 15V 0.267A 4W 6-PIN

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 15V 0.267A 4W 6-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 15.29

General part information

Enclosed AC DC Converters 1 Output 15V 267mA 85 ~ 264 VAC, 120 ~ 370 VDC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 5V 4W

Part	Package / Case	Standard Number	Mounting Type	Line Regulation	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Weight	Weight	Type	Approval Agency	Features	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Applications	Number of Outputs	Load Regulation	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Line Regulation	Load Regulation
Delta Electronics AA04S0500A	7-DIP Module, 6 Leads	60950-1	Through Hole	Ý0.5%	-25 °C	60 °C	72 %	0.057 lb	25.85 g	Enclosed	CE, UL	Universal Input	800 mA	85 VAC, 120 VDC	264 VAC, 370 VDC	4 W	ITE (Commercial)	1	Ý0.5%	5 V	0.67 in	1.06 in	1.44 "	36.5 mm	27 mm	17.1 mm
Delta Electronics AA04S1200A	7-DIP Module, 6 Leads	60950-1	Through Hole	Ý0.5%	-25 °C	60 °C	76 %	0.057 lb	25.85 g	Enclosed	CE, UL	Universal Input	333 mA	85 VAC, 120 VDC	264 VAC, 370 VDC	4 W	ITE (Commercial)	1	Ý0.5%	12 V	0.67 in	1.06 in	1.44 "	36.5 mm	27 mm	17.1 mm
Delta Electronics AA04S1500A	7-DIP Module, 6 Leads	60950-1	Through Hole		-25 °C	60 °C	76 %	0.057 lb	25.85 g	Enclosed	CE, UL	Universal Input	267 mA	85 VAC, 120 VDC	264 VAC, 370 VDC	4 W	ITE (Commercial)	1		15 V	0.67 in	1.06 in	1.44 "	36.5 mm	27 mm	17.1 mm	0.5 %	0.5 %

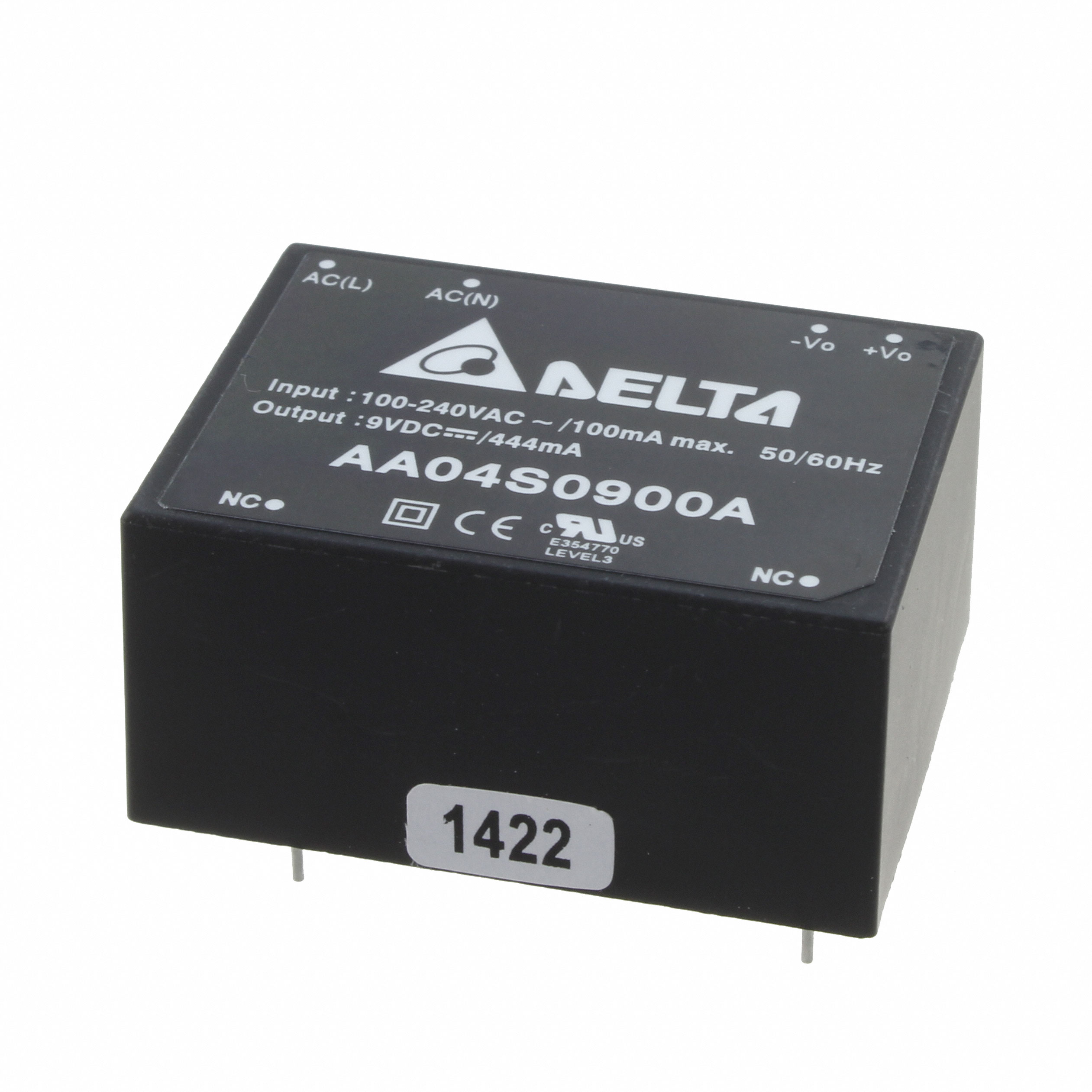

Delta Electronics AA04S0900A	7-DIP Module, 6 Leads	60950-1	Through Hole	Ý0.5%	-25 °C	60 °C	75 %	0.057 lb	25.85 g	Enclosed	CE, UL	Universal Input	444 mA	85 VAC, 120 VDC	264 VAC, 370 VDC	4 W	ITE (Commercial)	1	Ý0.5%	9 V	0.67 in	1.06 in	1.44 "	36.5 mm	27 mm	17.1 mm
