M85049/69-13A

Active

Amphenol Interconnect India

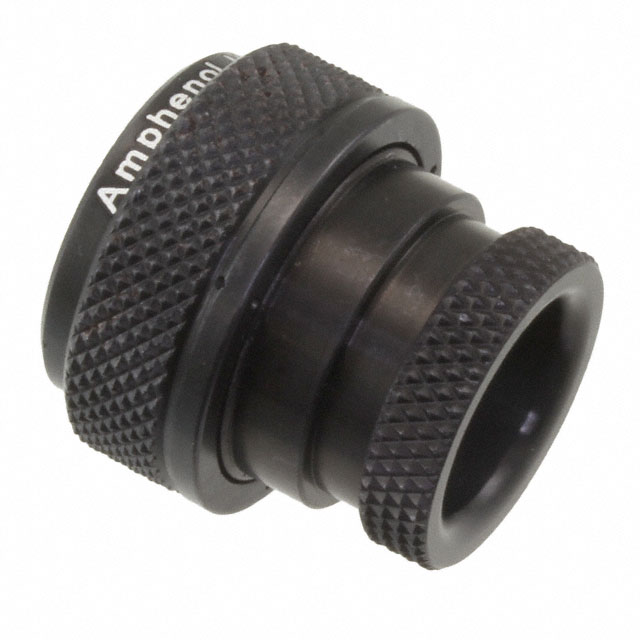

CONN BACKSHELL ADPT SZ13 BLK M18

Deep-Dive with AI

Search across all available documentation for this part.

M85049/69-13A

Active

Amphenol Interconnect India

CONN BACKSHELL ADPT SZ13 BLK M18

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.93
		10	$ 13.23
		25	$ 12.73
		50	$ 12.22
		100	$ 11.54
		250	$ 10.52
		500	$ 9.84
		1000	$ 9.03
	Bulk	1	$ 267.12

Description

General part information

M85049/69 Series

Black Connector Backshell, Heat Shrink Adapter M18x1 13

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/69-13A	M85049/69 Series

Cable Exit	180 °	180 °
Cable Opening [custom]	12.7 mm	6.35 - 30.23 mm
Cable Opening [custom]	0.5 in	0.25 - 1.19 in
Color	Black	Black, Olive, Olive Drab, Silver
Diameter - Outside	-	19.05 - 46.99 mm
Diameter - Outside	-	0.75 - 1.85 in
Features	-	Drain Hole
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy	Aluminum Alloy
Plating	Anodized	Anodized, Zinc Cobalt, Cadmium Nickel, Cadmium, Electroless Nickel
Shell Size - Insert	13	11 - 25
Shell Size - Insert	-	D, H, J, G, 17, E, B, F, C
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Unshielded	Unshielded
Thread Size	M18x1	M18x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

M85049/69 Series

CONN BACKSHELL ADPT SZ15 D BLACK

Part	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Cable Exit	Material	Shielding	Color	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [custom]	Cable Opening [custom]	Plating	Features	Thread Size	Shell Size - Insert [custom]	Shell Size - Insert [custom]
Amphenol Interconnect India M85049/69-15A	15	D	MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Black	Backshell, Heat Shrink Adapter	29.21 mm	1.15 in	15.88 mm	0.625 in	Anodized
Amphenol Interconnect India M85049/69-23ZD	23	H	MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Black	Backshell, Heat Shrink Adapter	41.91 mm	1.65 "	26.92 mm	1.06 in	Zinc Cobalt	Drain Hole
Amphenol Interconnect India M85049/69-25ZD	25	J	MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Black	Backshell, Heat Shrink Adapter	46.99 mm	1.85 "	30.23 mm	1.19 in	Zinc Cobalt	Drain Hole
Amphenol Interconnect India M85049/69-21ZD	21	G	MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Black	Backshell, Heat Shrink Adapter	39.37 mm	1.55 in	23.88 mm	0.94 in	Zinc Cobalt	Drain Hole
Amphenol Interconnect India M85049/69-15W	15		MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Olive	Backshell, Heat Shrink Adapter			15.88 mm	0.625 in	Cadmium Nickel
Amphenol Interconnect India M85049/69-17W		17, E	MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Olive Drab	Backshell, Heat Shrink Adapter	31.75 mm	1.25 in	19.05 mm	0.75 in	Cadmium
Amphenol Interconnect India M85049/69-13A	13		MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Black	Backshell, Heat Shrink Adapter			12.7 mm	0.5 in	Anodized		M18x1
Amphenol Interconnect India M85049/69-11ZD	11	B	MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Black	Backshell, Heat Shrink Adapter	21.59 mm	0.85 in	9.65 mm	0.38 in	Zinc Cobalt	Drain Hole
Amphenol Interconnect India M85049/69-9A			MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Black	Backshell, Heat Shrink Adapter	19.05 mm	0.75 in			Anodized			9	A
Amphenol Interconnect India M85049/69-19Z	19	F	MIL-DTL-38999 Series III, IV	180 °	Aluminum Alloy	Unshielded	Black	Backshell, Heat Shrink Adapter	35.56 mm	1.4 in	20.57 mm	0.81 in	Zinc Cobalt
