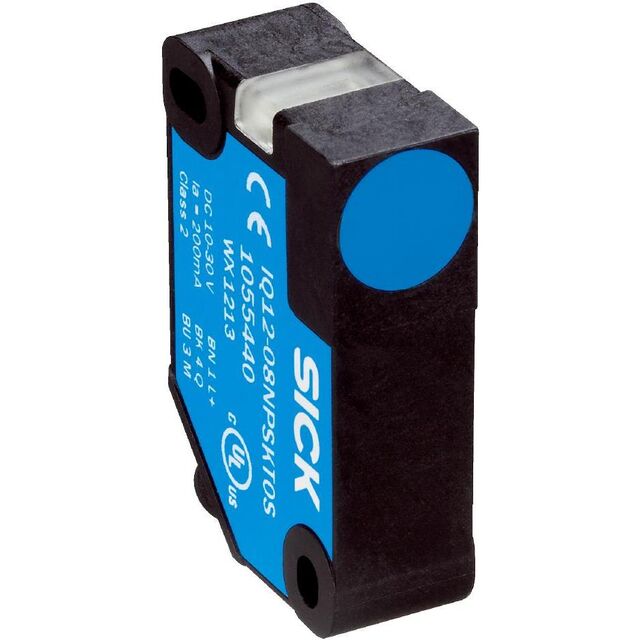

IQ12 Series

Part	Indicator	Package / Case	Ingress Protection	Shielding	Sensor Type	Sensing Distance	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Response Frequency	Material - Body	Termination Style
SICK, Inc. 1055430	LED	Module	IP68	Shielded	Inductive	0.157 "	10 VDC	30 VDC	75 °C	-25 °C	3-Wire NPN-NO	2 kHz	Plastic	Cable Leads
SICK, Inc. 1055431	LED	Module	IP68	Shielded	Inductive	0.157 "	10 VDC	30 VDC	75 °C	-25 °C	3-Wire NPN-NC	2 kHz	Plastic	Cable Leads
SICK, Inc. 1062453	LED	Module	IP68	Shielded	Inductive	0.157 "	10 VDC	30 VDC	75 °C	-25 °C	3-Wire PNP-NO	2 kHz	Plastic	Cable with Connector
SICK, Inc. 1055438	LED	Module	IP68	Shielded	Inductive	0.315 "	10 VDC	30 VDC	75 °C	-25 °C	3-Wire NPN-NO	2 kHz	Plastic	Cable Leads
SICK, Inc. 1055442	LED	Module	IP68	Shielded	Inductive	0.315 "	10 VDC	30 VDC	75 °C	-25 °C	3-Wire NPN-NO	2 kHz	Plastic	Connector
SICK, Inc. 1055435	LED	Module	IP68	Shielded	Inductive	0.157 "	10 VDC	30 VDC	75 °C	-25 °C	3-Wire NPN-NC	2 kHz	Plastic	Connector
SICK, Inc. 1055436	LED	Module	IP68	Shielded	Inductive	0.315 "	10 VDC	30 VDC	75 °C	-25 °C	3-Wire PNP-NO	2 kHz	Plastic	Cable Leads
SICK, Inc. IQ12-04BPSKW2S	LED	Module	IP68	Shielded	Inductive	0.157 "	10 VDC	30 VDC	75 °C	-25 °C	3-Wire PNP-NO	2 kHz	Plastic	Cable Leads
SICK, Inc. 1055446	LED	Module	IP68	Shielded	Inductive	0.157 "	10 VDC	30 VDC	75 °C	-25 °C	4-Wire NO PNP-NC	2 kHz	Plastic	Cable with Connector
SICK, Inc. IQ12-08NPSKW5S	LED	Module	IP68	Shielded	Inductive	0.315 "	10 VDC	30 VDC	75 °C	-25 °C	3-Wire PNP-NO	2 kHz	Plastic	Cable Leads
