ERN.00.250.CTL

Active

LEMO

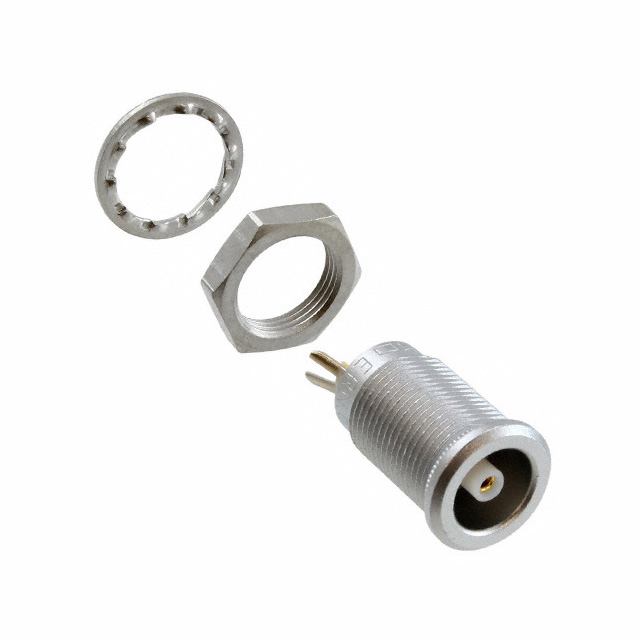

CONN NIMCAMA JCK STR 50OHM SOLDR

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMA JCK STR 50OHM SOLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERN.00.250.CTL	ERN.00.250 Series

Body Finish	Chrome	Chrome, Nickel
Body Material	Brass	Brass
Center Contact Material	Bronze	Bronze
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549
Connector Type	Female Socket, Jack	Female Socket, Jack, Receptacle
Contact Termination	Solder Cup	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver, Natural
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	250 - 260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	700 VDC	700 VDC

CONN NIMCAMA JCK STR 50OHM SOLDR

Part	Connector Style	Center Contact Plating	Voltage Rating	Fastening Type	Body Finish	Includes	Contact Termination	Mating Cycles	Center Contact Material	Number of Ports	Shield Termination	Impedance	Mounting Feature	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Ingress Protection	Connector Type	Housing Color
LEMO ERN.00.250.CTL	NIM-CAMAC CD/N 549	Gold	700 VDC	Push-Pull	Chrome	1 Connector, 1 Lockwasher, 1 Nut	Solder Cup	5000	Bronze	1	Solder	50 Ohms	Bulkhead - Rear Side Nut	Brass	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	IP50	Female Socket, Jack	Silver
LEMO ERN.00.250.GTL	NIM-CAMAC CD/N 549	Gold	700 VDC	Push-Pull		1 Connector, 1 Lockwasher, 1 Nut	Solder Cup	5000	Bronze	1	Solder	50 Ohms	Bulkhead - Rear Side Nut		-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	IP50	Female Socket, Receptacle	Natural
LEMO ERN.00.250.NTL	NIM-CAMAC CD/N 549	Gold	700 VDC	Push-Pull	Nickel	1 Connector, 1 Lockwasher, 1 Nut	Solder Cup	5000	Bronze	1	Solder	50 Ohms	Bulkhead - Rear Side Nut	Brass	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	IP50	Female Socket, Receptacle	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
