ANT-DB1-RMS-RPS

Active

TE Connectivity Linx

RF ANT 892MHZ/1.9GHZ WHIP STR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-DB1-RMS-RPS

Active

TE Connectivity Linx

RF ANT 892MHZ/1.9GHZ WHIP STR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT-DB1-RMS-RPS	ANT-DB1 Series

Antenna Type	Whip, Straight	Chip, Flat Bar, Dome, Tilt, Whip, Whip, Straight, Log Periodic
Applications	-	Bluetooth, Wi-Fi, U-NII, 802.11, WLAN, Zigbee™, WiFi 5, WiFi 4, ZigBee, WiFi 6, 802.15.4, Thread, 802.11b/g/n/ac, ISM, Wi-Fi 4, Wi-Fi 5, WiFi
Features	4.3 m	3 - 216 m
Features	Cable	Cable
Frequency (Center/Band)	1.9 GHz, 892 MHz	1.85 - 892 GHz
Frequency Group	-	4 GHz
Frequency Group	-	2 GHz
Frequency Group	-	3 GHz
Frequency Group	-	Wide Band
Frequency Range [Max]	960 MHz, 1.99 GHz	1.99 - 960 GHz
Frequency Range [Min]	1.71 GHz, 824 MHz	1.71 - 860 GHz
Gain	5.3 dBi, -6 dBi	-6 - 9 dBi
Height (Max)	-	27 mm
Height (Max)	-	15.551 "
Height (Max)	-	395 mm
Height (Max) [Max]	65.6 mm	1.1 - 104.9 mm
Height (Max) [Max]	2.583 "	0.043 - 4.13 in
Mounting Type	-	Surface Mount, Adhesive, Connector Mount, Bracket Mount
Number of Bands	2	2 - 3
Power - Max	-	5 - 100 W
Return Loss	-	-10.2 - -4.4 dB
RF Family/Standard	-	WiFi, Bluetooth, 802.15.4
Termination	RP-SMA Male	Solder, TNC, IPEX MHF1, U.FL (UMCC), RP-SMA Male, N Type Female
VSWR	-	1.5 - 10.8
VSWR [Max]	2	2 - 2.7
VSWR [Min]	1.5	1.5

ANT-DB1 Series

RF ANT 2.4GHZ 5.8GHZ CHIP SOLDER

Part	RF Family/Standard	Antenna Type	Frequency (Center/Band)	Applications	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max]	Height (Max) [Max]	VSWR	Termination	Gain	Power - Max [Max]	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Frequency Group	Features	Features	Height (Max)	Return Loss	VSWR [Min]	VSWR [Max]
TE Connectivity Linx ANT-DB1-NSP250-T	Bluetooth, WiFi	Chip	2.4 GHz, 5.8 GHz	802.11, Bluetooth, U-NII, Wi-Fi, WLAN, Zigbee™	4 GHz	2 GHz	3 GHz	0.043 in	1.1 mm	2, 2.4	Solder	2.7 dBi, 3.7 dBi	5 W	2	2.5 GHz, 5.88 GHz	2.4 GHz, 5.15 GHz	Surface Mount
TE Connectivity Linx ANT-DB1-HDP-SMA		Flat Bar	1.85 GHz, 2.45 GHz, 892 MHz					0.476 in	12.1 mm	1.5, 1.9		-3.3 dBi, 0 dBi, 0.2 dBi		3			Adhesive	Wide Band	Cable	3 m
TE Connectivity Linx ANT-DB1-HDP-TNC		Flat Bar	1.85 GHz, 2.45 GHz, 892 MHz					0.476 in	12.1 mm	1.5, 1.9	TNC	-3.3 dBi, 0 dBi, 0.2 dBi		3			Adhesive	Wide Band	Cable	3 m
TE Connectivity Linx ANT-DB1-WRT-MON-UFL	WiFi	Dome	2.45 GHz, 5.5225 GHz	Wi-Fi	4 GHz	2 GHz	3 GHz	1.063 in		2.2, 10.8	IPEX MHF1, U.FL (UMCC)	1 dBi, 2.8 dBi	5 W	2	2.5 GHz, 5.895 GHz	2.4 GHz, 5.15 GHz			Cable	216 mm	27 mm
TE Connectivity Linx ANT-DB1-WRT-UFL	WiFi	Dome	2.4 GHz, 5 GHz, 6 GHz	802.11, 802.15.4, Bluetooth, WiFi 4, WiFi 5, WiFi 6, ZigBee	4 GHz	2 GHz	3 GHz	0.394 in	10 mm	1.9, 3.7, 4	IPEX MHF1, U.FL (UMCC)	3.2 dBi, 6.8 dBi, 7 dBi	5 W	3	2.485 GHz, 5.85 GHz, 7.125 GHz	2.4 GHz, 5.15 GHz, 5.925 GHz			Cable	216 mm		-10.2 dB, -4.8 dB, -4.4 dB
TE Connectivity Linx ANT-DB1-WRT-SMA	WiFi	Dome	2.4 GHz, 5 GHz, 6 GHz	802.11, 802.15.4, Bluetooth, WiFi 4, WiFi 5, WiFi 6, ZigBee	4 GHz	2 GHz	3 GHz	0.394 in	10 mm	1.9, 3.7, 4		3.2 dBi, 6.8 dBi, 7 dBi	5 W	3	2.485 GHz, 5.85 GHz, 7.125 GHz	2.4 GHz, 5.15 GHz, 5.925 GHz			Cable	216 mm		-10.2 dB, -4.8 dB, -4.4 dB
TE Connectivity Linx ANT-DB1-RAF-RPS	802.15.4, Bluetooth, WiFi	Tilt, Whip	2.4 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 5.8 GHz	Bluetooth, Thread, Wi-Fi, Zigbee™	4 GHz	2 GHz	3 GHz	4.13 in	104.9 mm	1.9	RP-SMA Male	2.5 dBi, 4.6 dBi		2	2.483 GHz, 5.825 GHz	2.4 GHz, 5.15 GHz	Connector Mount
TE Connectivity Linx ANT-DB1-WRT-MON-RPS	WiFi	Dome	2.45 GHz, 5.5225 GHz	802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™	4 GHz	2 GHz	3 GHz	1.063 in		2.2, 10.8	RP-SMA Male	1 dBi, 2.8 dBi	5 W	2	2.5 GHz, 5.895 GHz	2.4 GHz, 5.15 GHz			Cable	216 mm	27 mm
TE Connectivity Linx ANT-DB1-RMT-RPS		Whip, Straight	1.85 GHz, 892 MHz					3.382 in	85.9 mm		RP-SMA Male			2	1.99 GHz, 960 MHz	1.71 GHz, 860 MHz			Cable	4.3 m			1.5	2.7
TE Connectivity Linx ANT-DB1-RMS-TNC		Whip, Straight	1.9 GHz, 892 MHz					2.583 "	65.6 mm		TNC	-6 dBi, 5.3 dBi		2	1.99 GHz, 960 MHz	1.71 GHz, 824 MHz			Cable	4.3 m			1.5	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.21

Description

General part information

ANT-DB1 Series

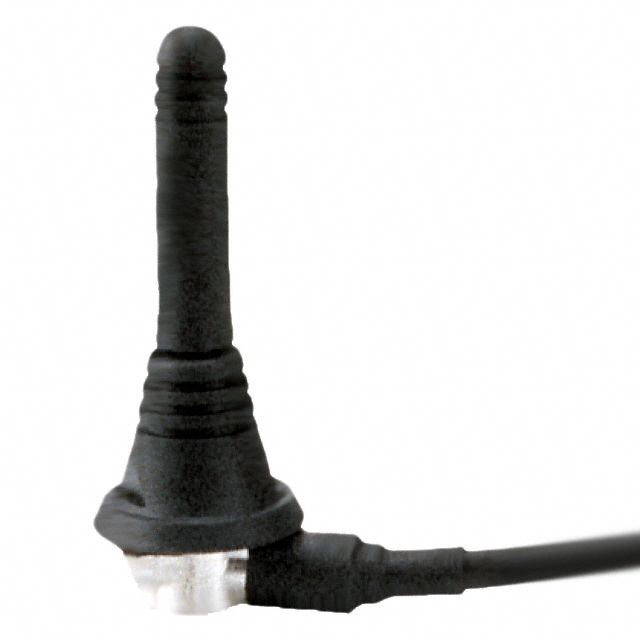

892MHz, 1.9GHz Whip, Straight RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz -0.6dBi, 5.3dBi RP-SMA Male Panel Mount
