T38230-17-0
ActiveCurtis Industries

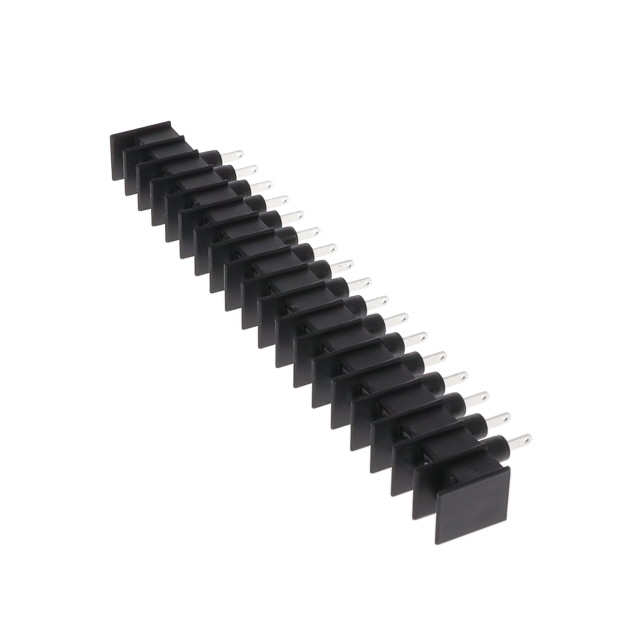

CONN BARRIER STRP 17CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
T38230-17-0
ActiveCurtis Industries
CONN BARRIER STRP 17CIRC 0.375"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T38230-17-0 | T38230 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Insulated, Quick Connect (0.110") | Insulated, Quick Connect (0.110") |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 17 | 1 - 25 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 17 | 3 - 25 |
| Number of Wire Entries | - | 1 - 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Nickel | Nickel |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.41 | |
| 10 | $ 9.16 | |||
T38230 Series
CONN BARRIER STRIP 1CIRCUIT
| Part | Barrier Type | Features | Terminal Screw Finish | Wire Gauge [Min] | Wire Gauge [Max] | Voltage Rating | Top Termination | Operating Temperature | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Terminal Block Type | Number of Rows | Bottom Termination | Number of Circuits | Material - Insulation | Terminal Screw Material | Number of Wire Entries [custom] | Pitch [x] | Pitch [x] | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries T38230-01-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 1 | Polypropylene (PP) | Steel | 1 | |||
Curtis Industries T38230-23-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 23 | Polypropylene (PP) | Steel | 23 | 9.53 mm | 0.375 in | |
Curtis Industries T38230-22-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 22 | Polypropylene (PP) | Steel | 22 | 9.53 mm | 0.375 in | |
Curtis Industries T38230-17-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 17 | Polypropylene (PP) | Steel | 9.53 mm | 0.375 in | 17 | |
Curtis Industries T38230-10-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 10 | Polypropylene (PP) | Steel | 9.53 mm | 0.375 in | 10 | |
Curtis Industries T38230-16-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 16 | Polypropylene (PP) | Steel | 9.53 mm | 0.375 in | 16 | |
Curtis Industries T38230-12-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 12 | Polypropylene (PP) | Steel | 9.53 mm | 0.375 in | 12 | |
Curtis Industries T38230-03-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 3 | Polypropylene (PP) | Steel | 9.53 mm | 0.375 in | 3 | |
Curtis Industries T38230-21-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 21 | Polypropylene (PP) | Steel | 9.53 mm | 0.375 in | 21 | |
Curtis Industries T38230-05-0 | 2 Wall (Dual) | Flange | Nickel | 12 AWG | 22 AWG | 300 VDC | Screws | 105 C | 20 A | Chassis, Panel | UL94 V-0 | Barrier Block | 1 | Insulated, Quick Connect (0.110") | 5 | Polypropylene (PP) | Steel | 9.53 mm | 0.375 in | 5 |
Description
General part information
T38230 Series
17 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
