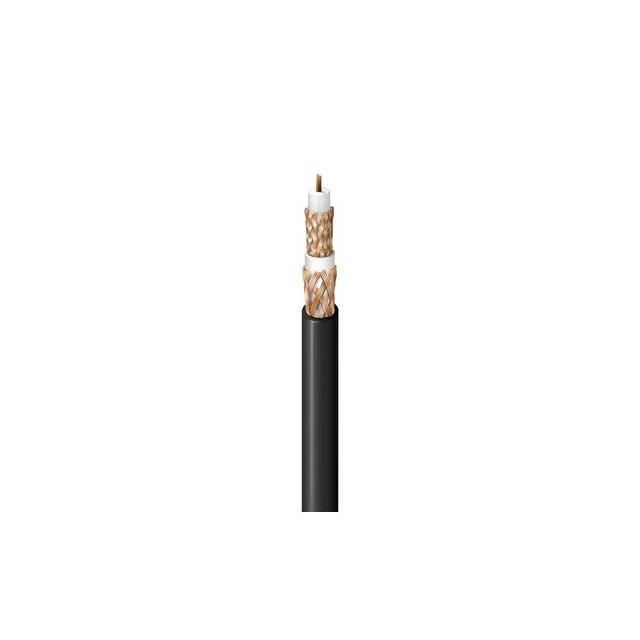

1859A 010500

Active

Belden Inc.

#15 FFEP BRD SLF BRD PVDF

Search across all available documentation for this part.

Active

Belden Inc.

#15 FFEP BRD SLF BRD PVDF

Technical Specifications

Parameters and characteristics for this part

Specification	1859A 010500

Cable Group	RG-11
Cable Type	Triaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	19, 27 AWG
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Dielectric Material	Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Diameter [diameter]	10.31 mm
Jacket (Insulation) Diameter [diameter]	0.406 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Shield Coverage	90 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video
VoP, Velocity of Propagation	80
Wire Gauge	15 AWG

Part	Shield Type	VoP, Velocity of Propagation	Usage	Shield Coverage	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand	Dielectric Material	Cable Type	Length	Length	Wire Gauge	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Jacket (Insulation) Material	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 1859A 010500	Braid	80	Video	90 %	Copper Bare	10.31 mm	0.406 in	Black	19 27 AWG	Fluorinated Ethylene-Propylene (FEP)	Triaxial - Plenum	152.4 m	6000 in	15 AWG	7.24 mm	0.285 in	Copper Bare	Polyvinylidene Fluoride (PVDF)	RG-11	-20 C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 13.29

General part information

Triaxial - Plenum Cable 15 AWG RG-11 500.0' (152.40m)
