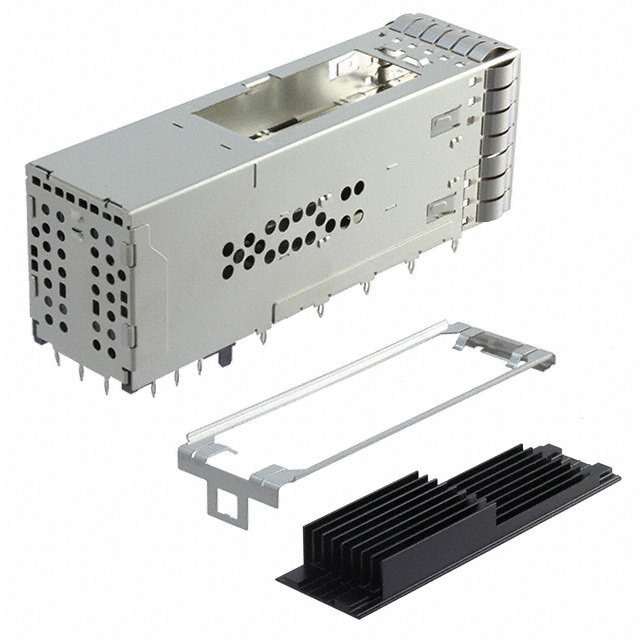

Specification	2299940-3

Connector Pin Configuration (Columns)	1 pins
Connector Pin Configuration (Rows)	2 pins
Connector Style	Receptacle with Cage, Ganged with Heat Sink
Connector Type	ZQSFP+
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	EMI Shielded
Mounting Type	Through Hole, Right Angle
Number of Positions (Columns)	38
Number of Positions (Rows)	2
Number of Positions (Total)	76
Termination	Press-Fit

2299940 Series

Part	Mounting Type	Termination	Number of Positions (Total)	Number of Positions (Columns)	Number of Positions (Rows)	Connector Style	Connector Pin Configuration (Rows)	Connector Pin Configuration (Columns)	Connector Type	Contact Finish Thickness	Features	Contact Finish
TE Connectivity AMP Connectors 2299940-5	Right Angle Through Hole	Press-Fit	76	38	2	Ganged with Heat Sink Receptacle with Cage	2 pins	1 pins	ZQSFP+	30 µin	EMI Shielded Light Pipe	Gold
TE Connectivity AMP Connectors 2299940-3	Right Angle Through Hole	Press-Fit	76	38	2	Ganged with Heat Sink Receptacle with Cage	2 pins	1 pins	ZQSFP+	30 µin	EMI Shielded	Gold
TE Connectivity AMP Connectors 2299940-2	Right Angle Through Hole	Press-Fit	76	38	2	Ganged with Heat Sink Receptacle with Cage	2 pins	1 pins	ZQSFP+	30 µin	EMI Shielded	Gold
