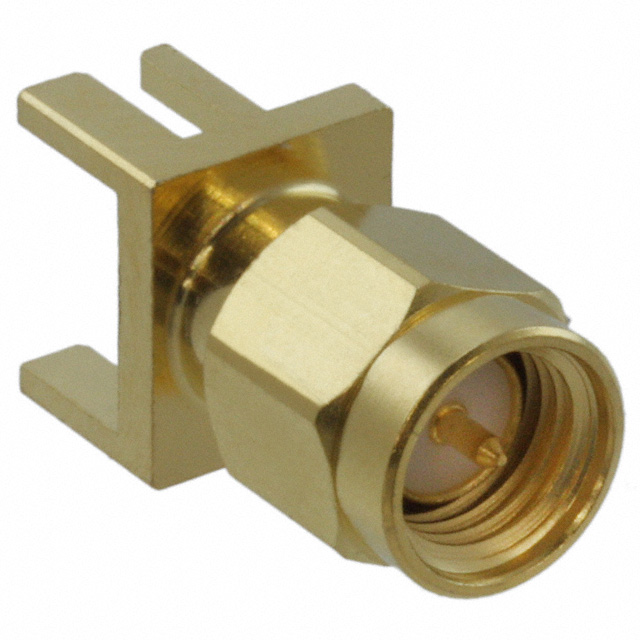

132365-10

Active

Amphenol RF

CONN SMA RCPT STR 50OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA RCPT STR 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	132365-10

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Receptacle
Contact Termination	Solder Tab
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Mating Cycles	Contact Termination	Frequency - Max [Max]	Number of Ports	Connector Style	Center Contact Plating	Body Finish	Impedance	Dielectric Material	Center Contact Material	Housing Color	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shield Termination	Mounting Type
Amphenol RF 132365-10	500	Solder Tab	18 GHz	1	SMA	Gold	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	Brass	-65 ░C	165 °C	Male Pin Receptacle	Solder	Board Edge End Launch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Male Pin 50 Ohms Board Edge, End Launch Solder Tab
