31-242

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	31-242

Body Finish	Nickel
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs, 1 pcs
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mounting Type	Contact Termination	Shield Termination	Includes	Center Contact Plating	Housing Color	Cable Group	Voltage Rating	Mating Cycles	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Frequency - Max [Max]	Fastening Type	Connector Type	Connector Style	Center Contact Material	Insertion Loss	Dielectric Material	Body Material	Body Finish
Amphenol RF 31-242	Free Hanging (In-Line)	Crimp Solder	Crimp	1 pcs 1 pcs 1 pcs 1 pcs 1 pcs	Gold	Silver	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	500 V	500	50 Ohms	-65 ░C	165 °C	1	4 GHz	Bayonet Lock	Male Pin Plug	BNC	Brass	0.2 dB	Polytetrafluoroethylene (PTFE)	Brass	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

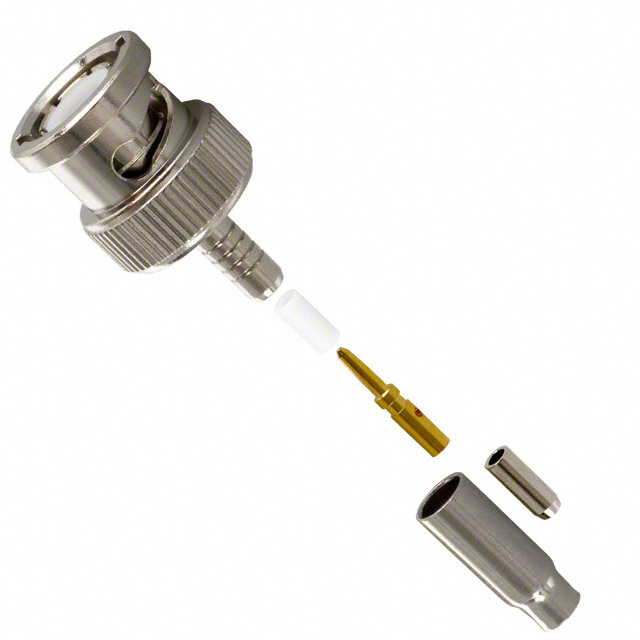

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
