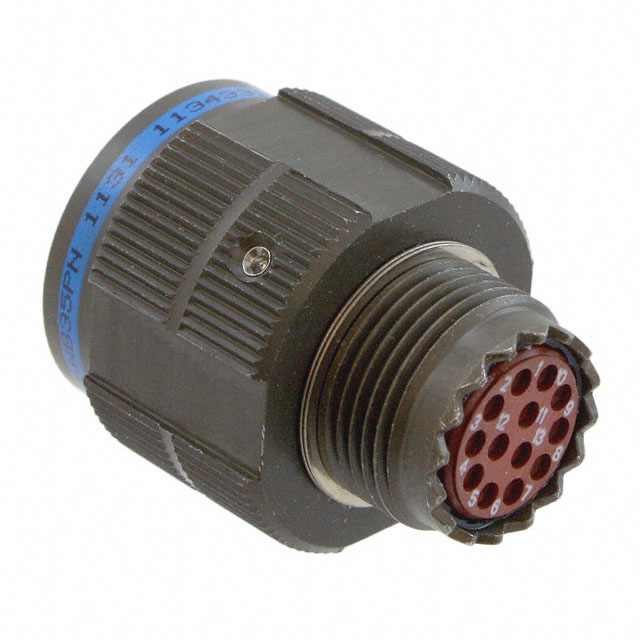

D38999/26WB35PNLC

Active

Amphenol Aerospace Operations

CONN PLUG HSG MALE 13POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WB35PNLC

Active

Amphenol Aerospace Operations

CONN PLUG HSG MALE 13POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WB35PNLC

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	22D
Contact Type	Crimp
Features	Coupling Nut, Self Locking
Grade	Military
Housing Color	Olive Drab
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	13
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	11
Shell Size, MIL	B
Shielding	Shielded
Type	For Male Pins

D38999/26WB Series

Part	Color	Qualification	Connector Type	Contact Finish - Mating	Grade	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Mounting Type	Number of Positions	Shell Finish	Backshell Material, Plating	Features	Primary Material	Shielding	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Termination	Shell Size, MIL	Applications	Contact Material	Orientation	Contact Shape	Note	Housing Color	Type	Contact Type	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Insert Material	Contact Size
Amphenol Aerospace Operations D38999/26WB98PN-CGMSS2	Olive Drab	MIL-DTL-38999 Series III	Male Pins Plug	Gold	Military	1.27 µm	50 µin	11-98	Free Hanging (In-Line)	6	Olive Drab Cadmium	Brass Nickel	Cord Grip Coupling Nut Self Locking	Metal	Shielded	Environment Resistant	-65 ░C	347 °F	Aluminum	Crimp	B	Aviation Marine Military	Copper Alloy	N
Amphenol Aerospace Operations D38999/26WB99JN-LC		MIL-DTL-38999 Series III	Plug Housing		Military			11-99	Free Hanging (In-Line)	7	Cadmium		Coupling Nut Self Locking		Shielded	Environment Resistant	-65 ░C	347 °F	Aluminum		B			N	Circular	Contacts Not Included	Olive Drab	For Female Sockets	Crimp	20
Amphenol Aerospace Operations D38999/26WB35JC	Olive Drab	MIL-DTL-38999 Series III	Female Sockets Plug	Gold	Military	2.54 çm	100 çin		Free Hanging (In-Line)	13	Olive Drab Cadmium		Coupling Nut Self Locking	Metal	Shielded	Environment Resistant	-65 ░C	347 °F	Aluminum	Crimp	B	Aviation Marine Military	Copper Alloy	C							11	35
Amphenol Aerospace Operations D38999/26WB98S	Olive Drab	MIL-DTL-38999 Series III	Female Sockets Plug	Gold	Military	1.27 µm	50 µin	11-98	Free Hanging (In-Line)	6	Olive Drab Cadmium		Coupling Nut	Metal	Shielded	Environment Resistant	-65 ░C	347 °F	Aluminum	Crimp	B	Aerospace Aviation Military	Copper Alloy	N
Amphenol Aerospace Operations D38999/26WB2SA-LC		MIL-DTL-38999 Series III	Plug Housing		Military			11-2	Free Hanging (In-Line)	2	Cadmium		Coupling Nut Self Locking		Shielded	Environment Resistant	-65 ░C	347 °F	Aluminum		B			A	Circular	Contacts Not Included	Olive Drab	For Female Sockets	Crimp	16
Amphenol Aerospace Operations D38999/26WB98BB		MIL-DTL-38999 Series III	Plug Housing		Military			11-98	Free Hanging (In-Line)	6	Cadmium		Coupling Nut Self Locking	Metal	Shielded	Environment Resistant	-65 ░C	347 °F	Aluminum		B			B	Circular	Contacts Not Included	Olive Drab	For Female Sockets	Crimp	20			Thermoplastic
Amphenol Aerospace Operations D38999/26WB35PNLC		MIL-DTL-38999 Series III	Plug Housing		Military				Free Hanging (In-Line)	13	Cadmium		Coupling Nut Self Locking	Metal	Shielded	Environment Resistant	-65 ░C	347 °F	Aluminum		B			N	Circular	Contacts Not Included	Olive Drab	For Male Pins	Crimp		11	35	Thermoplastic	22D
Amphenol Aerospace Operations D38999/26WB2SC-LC		MIL-DTL-38999 Series III	Plug Housing		Military			11-2	Free Hanging (In-Line)	2	Cadmium		Coupling Nut Self Locking		Shielded	Environment Resistant	-65 ░C	347 °F	Aluminum		B			C	Circular	Contacts Not Included	Olive Drab	For Female Sockets	Crimp	16
Amphenol Aerospace Operations D38999/26WB98SN-CGMSA	Olive Drab	MIL-DTL-38999 Series III	Female Sockets Plug	Gold	Military	1.27 µm	50 µin	11-98	Free Hanging (In-Line)	6	Olive Drab Cadmium	Brass Nickel	Cord Grip Coupling Nut Self Locking	Metal	Unshielded	Environment Resistant	-65 ░C	347 °F	Aluminum	Crimp	B	Aviation Marine Military	Copper Alloy	N
Amphenol Aerospace Operations D38999/26WB2HN-LC		MIL-DTL-38999 Series III	Plug Housing		Military			11-2	Free Hanging (In-Line)	2	Cadmium		Coupling Nut Self Locking		Shielded	Environment Resistant	-65 ░C	347 °F	Aluminum		B			N	Circular	Contacts Not Included	Olive Drab	For Male Pins	Crimp	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.09
		10	$ 31.77
		25	$ 28.82
		50	$ 26.82
		100	$ 25.02
		250	$ 22.89

Description

General part information

D38999/26WB Series

13 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Self Locking
