C4,TRRD

Active

Serpac

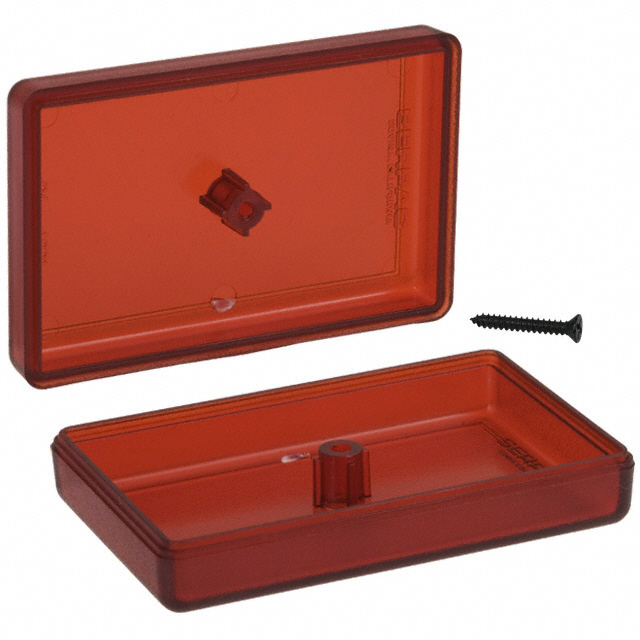

BOX ABS TRN RED 2.13"L X 1.38"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS TRN RED 2.13"L X 1.38"W

Technical Specifications

Parameters and characteristics for this part

Specification	C4,TRRD

Area (L x W) [custom]	19 cm²
Area (L x W) [custom]	2.94 in²
Color	Translucent - Red
Container Type	Box
Design	Split Sides, Hand Held
Height [z]	0.58 in
Height [z]	14.73 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	2.13 in
Size / Dimension [x]	54.1 mm
Size / Dimension [y]	1.38 in
Size / Dimension [y]	35.05 mm
Thickness	1.52 mm
Thickness	0.06 in
Weight	0.022 lb
Weight	9.98 g

Part	Material Flammability Rating	Ratings	Color	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Thickness	Material	Weight	Weight	Design	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Area (L x W)	Area (L x W)
Serpac C4,AL	UL94 HB	IP40	Almond	19 cm²	2.94 in²	2.54 mm	0.1 in	Plastic ABS	0.022 lb	9.98 g	Hand Held Split Sides	0.58 in	14.73 mm	1.38 in	2.13 in	35.05 mm	54.1 mm	Box
Serpac C4,BK	UL94 HB	IP40	Black	19 cm²	2.94 in²	2.54 mm	0.1 in	Plastic ABS	0.022 lb	9.98 g	Hand Held Split Sides	0.58 in	14.73 mm	1.38 in	2.13 in	35.05 mm	54.1 mm	Box
Serpac C4,TRBL	UL94 HB	IP40	Translucent - Blue	19 cm²	2.94 in²	1.52 mm	0.06 in	Plastic ABS	0.022 lb	9.98 g	Hand Held Split Sides	0.58 in	14.73 mm	1.38 in	2.13 in	35.05 mm	54.1 mm	Box
Serpac C4,TRGR	UL94 HB	IP40	Translucent - Green	19 cm²	2.94 in²	1.52 mm	0.06 in	Plastic ABS	0.022 lb	9.98 g	Hand Held Split Sides	0.58 in	14.73 mm	1.38 in	2.13 in	35.05 mm	54.1 mm	Box
Serpac C4,GY	UL94 HB	IP40	Gray			2.54 mm	0.1 in	Plastic ABS	0.022 lb	9.98 g	Hand Held Split Sides	0.58 in	14.73 mm	1.38 in	2.13 in	35.05 mm	54.1 mm	Box	19 cm˛	2.94 in˛
Serpac C4,TRRD	UL94 HB	IP40	Translucent - Red	19 cm²	2.94 in²	1.52 mm	0.06 in	Plastic ABS	0.022 lb	9.98 g	Hand Held Split Sides	0.58 in	14.73 mm	1.38 in	2.13 in	35.05 mm	54.1 mm	Box
Serpac C4,TRGY	UL94 HB	IP40	Translucent - Gray	19 cm²	2.94 in²	1.52 mm	0.06 in	Plastic ABS	0.022 lb	9.98 g	Hand Held Split Sides	0.58 in	14.73 mm	1.38 in	2.13 in	35.05 mm	54.1 mm	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 9.64

General part information

Box Plastic, ABS Translucent - Red Hand Held, Split Sides 2.130" L x 1.380" W (54.10mm x 35.05mm) X 0.580" (14.73mm)

Technical documentation and resources

No documents available
