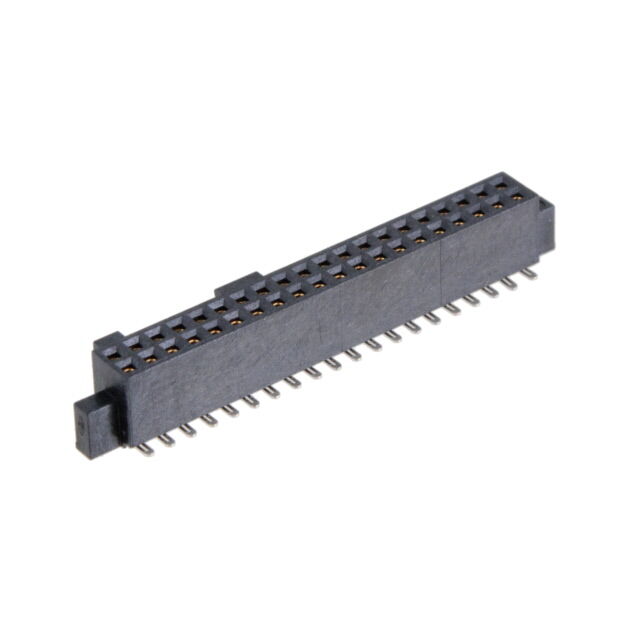

SFML-120-T2-S-D-K

Active

Samtec Inc.

CONN RCPT 40POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsSFML Series Other Related Documents 01 SFML-105-01-L-D Datasheet 02 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFML-120-T2-S-D-K

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Locking Ramp
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFML-120 Series

Part	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating	Number of Positions	Insulation Height	Insulation Height	Fastening Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Number of Positions Loaded	Contact Finish - Post	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Material Flammability Rating	Contact Type	Insulation Material	Style	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SFML-120-02-S-D-LC-P-TR	2	30 Áin	0.76 Ám	3.2 A	250 VAC	40	0.185 in	4.7 mm	Locking Ramp	Board Lock Pick and Place	-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Surface Mount	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable
Samtec Inc. SFML-120-02-S-D-A	2	30 Áin	0.76 Ám	3.2 A	250 VAC	40	0.185 in	4.7 mm	Locking Ramp	Board Guide	-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Surface Mount	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable
Samtec Inc. SFML-120-T2-L-D-P-TR	2	10 çin	0.25 çm	3.2 A	250 VAC	40	0.185 in	4.7 mm	Locking Ramp	Pick and Place	-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Surface Mount	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable
Samtec Inc. SFML-120-T2-L-D-A	2	10 çin	0.25 çm	3.2 A	250 VAC	40	0.185 in	4.7 mm	Locking Ramp	Board Guide	-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Surface Mount	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable
Samtec Inc. SFML-120-02-S-D-P-TR	2	30 Áin	0.76 Ám	3.2 A	250 VAC	40	0.185 in	4.7 mm	Locking Ramp	Pick and Place	-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Surface Mount	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable
Samtec Inc. SFML-120-L1-S-D	2	30 Áin	0.76 Ám	3.2 A	250 VAC	40	0.18 "	4.57 mm	Locking Ramp		-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Through Hole	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.12 in	3.05 mm
Samtec Inc. SFML-120-01-L-D	2	10 çin	0.25 çm	3.2 A	250 VAC	40	0.18 "	4.57 mm	Locking Ramp		-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Through Hole	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.12 in	3.05 mm
Samtec Inc. SFML-120-T2-S-D-A-P	2	30 Áin	0.76 Ám	3.2 A	250 VAC	40	0.185 in	4.7 mm	Locking Ramp	Board Guide Pick and Place	-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Surface Mount	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable
Samtec Inc. SFML-120-L2-S-D	2	30 Áin	0.76 Ám	3.2 A	250 VAC	40	0.185 in	4.7 mm	Locking Ramp		-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Surface Mount	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable
Samtec Inc. SFML-120-T2-S-D-K	2	30 Áin	0.76 Ám	3.2 A	250 VAC	40	0.185 in	4.7 mm	Locking Ramp	Pick and Place	-55 °C	125 °C	Square	Gold	0.05 in	1.27 mm	Surface Mount	Black	All	Tin	Receptacle	0.05 in	1.27 mm	Solder	UL94 V-0	Female Socket	Liquid Crystal Polymer (LCP)	Board to Board Cable
