CDL4U(E)LD2/24V

Active

TE Connectivity Raychem Cable Protection

CONN TERM BLK FEED THRU 10-22AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

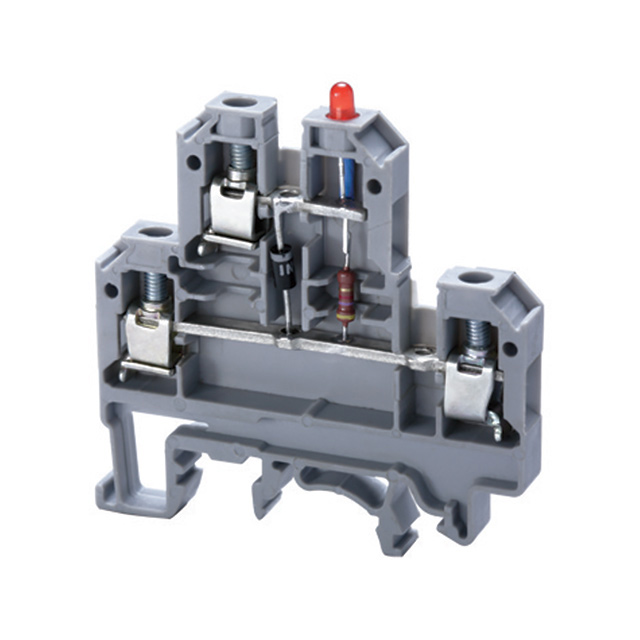

CDL4U(E)LD2/24V

Active

TE Connectivity Raychem Cable Protection

CONN TERM BLK FEED THRU 10-22AWG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDL4U(E)LD2/24V

Color	Gray
Current - IEC	32 A
Current - UL	35 A
Features	LED, Diode
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	2
Number of Levels	Connected
Stripping Length	9 mm
Terminal - Width [y]	6 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	500 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm˛ [Max]	4 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛

CDL4 Series

Part	Voltage - IEC	Features	Material - Insulation	Terminal - Width [y]	Current - IEC	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Voltage - UL	Type	Number of Levels	Number of Levels	Stripping Length	Current - UL	Color	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
TE Connectivity Raychem Cable Protection CDL4U(E)LD2/24V	500 V	Diode LED	Polyamide (PA66) Nylon 6/6	6 mm	32 A	0.2 mm˛	4 mm˛	600 V	Feed Through	2	Connected	9 mm	35 A	Gray	Screw	22 AWG	10 AWG
Altech Corporation CDL4U(E)LD2/24V	500 V	Diode LED	Polyamide (PA66) Nylon 6/6	6 mm	32 A	0.2 mm˛	4 mm˛	600 V	Feed Through	2	Connected	9 mm	35 A	Gray	Screw	22 AWG	10 AWG
Altech Corporation CDL4UN	800 V		Polyamide (PA66) Nylon 6/6	6 mm	32 A	0.2 mm˛	4 mm˛	600 V	Feed Through	2		9 mm	35 A	Gray	Screw	22 AWG	10 AWG	4
Altech Corporation CDL4UN(I.S)/DB	800 V		Polyamide (PA66) Nylon 6/6	6 mm	32 A			600 V	Feed Through	2	Connected	9 mm	35 A	Brown	Screw	22 AWG	10 AWG	4	0.2 mm²	4 mm²
Altech Corporation CDL4UN/Y	800 V		Polyamide (PA66) Nylon 6/6	6 mm	32 A	0.2 mm˛	4 mm˛	600 V	Feed Through	2		9 mm	35 A	Yellow	Screw	22 AWG	10 AWG	4
TE Connectivity Raychem Cable Protection CDL4UN(I.S)/BU	800 V		Polyamide (PA66) Nylon 6/6	6 mm	32 A			600 V	Feed Through	2	Connected	9 mm	35 A	Blue	Screw	22 AWG	10 AWG	4	0.2 mm²	4 mm²
Altech Corporation CDL4UN(I.S)/BU	800 V		Polyamide (PA66) Nylon 6/6	6 mm	32 A			600 V	Feed Through	2	Connected	9 mm	35 A	Blue	Screw	22 AWG	10 AWG	4	0.2 mm²	4 mm²
Altech Corporation CDL4UN/DB	800 V		Polyamide (PA66) Nylon 6/6	6 mm	32 A			600 V	Feed Through	2		9 mm	35 A	Brown	Screw	22 AWG	10 AWG	4	0.2 mm²	4 mm²
Altech Corporation CDL4UN(I.S)	800 V		Polyamide (PA66) Nylon 6/6	6 mm	32 A			600 V	Feed Through	2	Connected	9 mm	35 A	Gray	Screw	22 AWG	10 AWG	4	0.2 mm²	4 mm²
Altech Corporation CDL4U(E)SDUA24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.39
		10	$ 4.87
		100	$ 3.96
		1000	$ 2.93

Description

General part information

CDL4 Series

Terminal Block Connector 3 Position Feed Through Gray 10-22 AWG
